CD1 MD1 Heavy Duty Electric Wire Rope Hoist For Storage / Warehouse
/ Workshop
CD1 MD1 Model, Electric Wire Rope Hoist with Trolley or Fixed Type

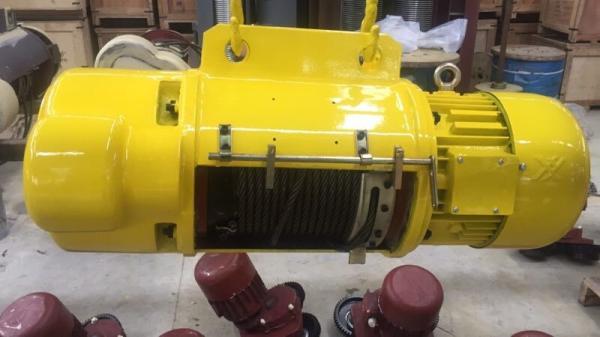

Electric Wire Rope Hoist with yellow color by double speed used in
high temperature area
Small-sized lifting equipment which can be mounted on single beam,
bridge, gantry and arm cranes.
Widely used in factories, mines, harbors, warehouses, cargo storage
areas and shops, essential in raising working efficiency and
improving working conditions.
Product Details:
CD1 MD1 Electric Wire Rope Hoist
Features and advantages:
1. CD1/MD1 model can be used as a winch after slight modification.
2. Choose single or double lifting speed, even multi-speed with
frequency inverters.
3. The suitable rail for low-headroom hoist is H-type rail, and
I-type also is available.
4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or
4/1.
5. The normal traveling speed is 20m/min, or 12.5m/min, 16m/min,
25m/min, 32m/min by request.
6. The normal rail gauge of the double-girder hoist is 1200mm,
1500mm, 1800mm, 2100mm and 2300mm.
7. The normal traveling speed is 20m/min, or 30m/min, 45m/min by
request.
8. CD1 has only a normal speed which can satisfy Normal
application.
9. MD1 provides two speeds: Normal speed and Low speed. It can do
precise loading and unloading, mounding of sand box, maintenance of
machine tools, etc at a low speed.
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | I Beam Track Type | Working Duty | (H)Lifting Height | Running Motor |
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply |
| CD1-0.25 | 0.25 | 3-9 | 8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase | 0.06 | 1400 | 220-440V 50/60HZ 3 Phase |
| CD1-0.5 | 0.5 | 6-12 | 8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.8 | 1380 | 0.2 | 1380 |
| CD1-1 | 1 | 6-30 | 8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 1.5 | 1380 | 0.2 | 1380 |
| CD1-2 | 2 | 6-30 | 8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 3 | 1380 | 0.4 | 1380 |
| CD1-3 | 3 | 6-30 | 8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 4.5 | 1380 | 0.4 | 1380 |
| CD1-5 | 5 | 6-30 | 8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 7.5 | 1380 | 0.8 | 1380 |
| CD1-10 | 10 | 6-30 | 7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 |
| CD1-16 | 16 | 6-30 | 3.5 | 20 | 6*37+1 | 15 | 45a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 |
| CD1-20 | 20 | 6-30 | 3.5 | 20 | 6*37+1 | 20 | 50a-63c | M3 | 13 | 1380 | 0.8*2 | 1380 |
| | | | | | | | | | | | | | |
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | I Beam Track Type | Working Duty | (H)Lifting Height | Running Motor |
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply |
| MD1-0.25 | 0.25 | 3-9 | 8/0.8 | 20 | 6*19 | 3.6 | 16-22b | M3 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase | 0.06 | 1400 | 220-440V 50/60HZ 3 Phase |
| MD1-0.5 | 0.5 | 6-12 | 8/0.8 | 20 | 6*37+1 | 4.8 | 16-28b | M3 | 0.2/0.8 | 1380 | 0.2 | 1380 |
| MD1-1 | 1 | 6-30 | 8/0.8 | 20 | 6*37+1 | 7.4 | 16-28b | M3 | 0.2/1.5 | 1380 | 0.2 | 1380 |
| MD1-2 | 2 | 6-30 | 8/0.8 | 20 | 6*37+1 | 11 | 20a-32c | M3 | 0.4/3 | 1380 | 0.4 | 1380 |
| MD1-3 | 3 | 6-30 | 8/0.8 | 20 | 6*37+1 | 13 | 20a-32c | M3 | 0.4/4.5 | 1380 | 0.4 | 1380 |
| MD1-5 | 5 | 6-30 | 8/0.8 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 0.8/7.5 | 1380 | 0.8 | 1380 |
| MD1-10 | 10 | 6-30 | 7/0.7 | 20 | 6*37+1 | 15 | 25a-63c | M3 | 1.5/13 | 1380 | 0.8*2 | 1380 |
| MD1-16 | 16 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 15 | 45a-63c | M3 | 1.5/13 | 1380 | 0.8*2 | 1380 |
| MD1-20 | 20 | 6-30 | 3.5/0.35 | 20 | 6*37+1 | 20 | 50a-63c | M3 | 1.5/13 | 1380 | 0.8*2 | 1380 |
