    L Horizontal Plate Clamp with Working Load Limit 0.8 t - 10 t for Profiled Bar

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : L type
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 pcs/week
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    L Horizontal Plate Clamp with Working Load Limit 0.8 t - 10 t for Profiled Bar

    L Horizontal Plate Clamp


    Working load limit: 0.8t – 10t

    Lifting and transporting steel plate, construction and profiled bar in horizontal position

    High quality carbon steel

    Avoid snatch or shock loading

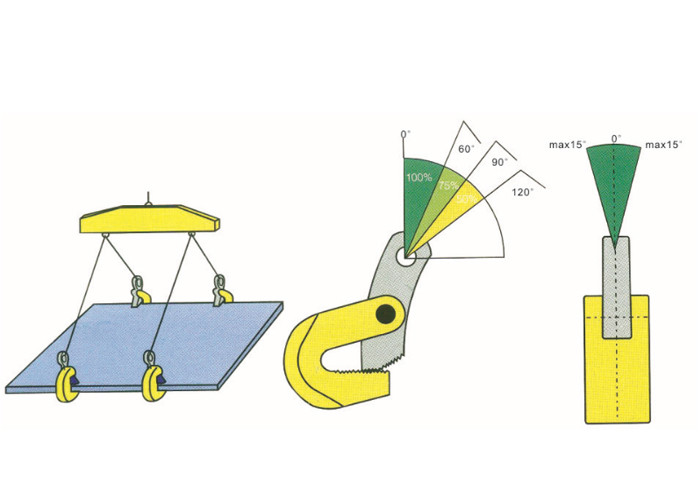

    The working load limit is the maximum load that the clamp are authorized to support when used in pairs with a lift angle of 60°. The clamps can lift in pairs or multiples.

    Die-forged special alloy steels are optimally tempered for maximum strength and durability


    L Horizontal Plate Clamp with Working Load Limit 0.8 t - 10 t for Profiled Bar

    ModelWLL (ton)Jaw opening (mm)Weight kg
    0.8t0.80-152
    1t10-204
    1.6t1.60-256.5
    2.5t2.50-3011
    2.5t2.525-5011
    3.2t3.20-4012.5
    3.2t3.230-6012.5
    5t50-5019
    5t550-8020
    10t1020-10043
