Brand Name : | JCYC/OEM |
Model Number : | JCYC-SHSL-B |
Certification : | CE & ISO |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 300 sets per month |
Delivery Time : | 15 to 20 working days |
5 Ton 30 Ton 50 Ton Double Girder Electric Hoist for Overhead Crane
Brief Introduction
HC series electric hoist is heavy duty hoist, which consists of a
novel large tonnage electric hoist, through a pulley group of
magnification and the motor transformation, can be combined to be
able to meet a variety of occasions the use of lifting equipment.
A. The speed reducer adopts a square structure, convenient
installation and transportation.
B. Base type combination and transformation, greatly widens the use
range of the elctric hoist.
C. Working lever range for M3-M6.
D. With the upper limit of double limit function.
E. Lifting weight limit protection fuction
F. With overload, overcurrent, pressure loss, phase interruption
protection function.
Technical parameters
Model | Unit | HC-16 | HC-20 | HC-25 | HC-30 | HC-36 | HC-56 | HC-100 |
Capacity | t | 16 | 20 | 25 | 30 | 36 | 56 | 100 |
Lifting height | m | 3-48 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 | 3-30 |
lIfting speed | m/min | 3.5-6 | 4 | 4 | 3 | 3 | 3 | 2 |
Running speed | m/min | 20 | 20 | 5-20 | ||||
Rope diameter | mm | 17.5-25 | 21.5 | 26 | 36 | |||
Wire diameter | mm | 0.7-1.1 | 1 | 1 | 1 | 1 | 1.2 | 1.8 |
Rope structure | 6*37+1 | |||||||
I beam type | 45a-63c | 50a-63c |
Questions before quotation:
1. Capacity?
2. Lifting height?
3. Track gauge(m)?
4. Power supply?
The more the better.

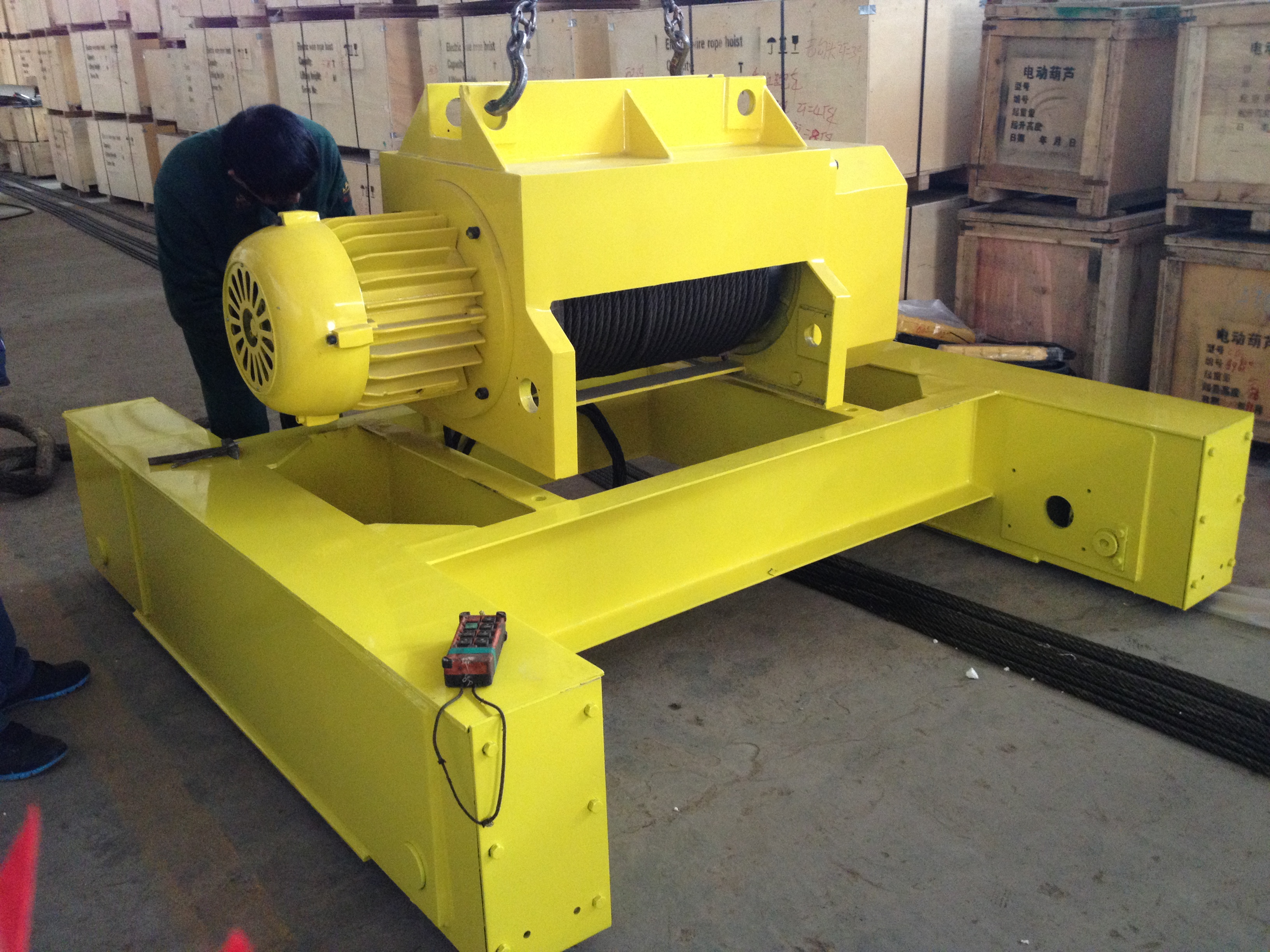

Product show
![]() |
