10 ton China Manufacturer On Sale Best Price Electric Wire Rope
Hoist
Product Introduction
CD1 MD1 Type on sale electric wire rope hoist with capacity varied
from 0.25t to 32t. It has advantages of high working efficiency,
fast lifting speed, durable and easy maintenance. It is our main
hot sale electric hoist, contact me for best price.
This type wire rope electric hoist used separately or in
combination with single beam, hoist double girder crane, gantry
crane , cantilever crane and others, widely used in railways,
docks, industrial and mining enterprises, warehouses and other
construction areas.
Technical configuration
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height |
| Power(kw) | R.P.M(r/min) | Power Supply |
| CD1-0.25 | 0.25 | 8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| CD1-0.5 | 0.5 | 8 | 20 | 6*37+1 | 4.8 | 0.8 | 1380 |
| CD1-1 | 1 | 8 | 20 | 6*37+1 | 7.4 | 1.5 | 1380 |
| CD1-2 | 2 | 8 | 20 | 6*37+1 | 11 | 3 | 1380 |
| CD1-3 | 3 | 8 | 20 | 6*37+1 | 13 | 4.5 | 1380 |
| CD1-5 | 5 | 8 | 20 | 6*37+1 | 15 | 7.5 | 1380 |
| CD1-10 | 10 | 7 | 20 | 6*37+1 | 15 | 13 | 1380 |
| CD1-16 | 16 | 3.5 | 20 | 6*37+1 | 15 | 13 | 1380 |
| CD1-20 | 20 | 3.5 | 20 | 6*37+1 | 20 | 13 | 1380 |
| | | | | | | | |
| Model | Lifting Capacity(t) | Lifting Speed(m/min) | Running Speed(m/min) | Wire Rope Type | Dia. Of Wire Rope(mm) | (H)Lifting Height |
| Power(kw) | R.P.M(r/min) | Power Supply |
| MD1-0.25 | 0.25 | 8/0.8 | 20 | 6*19 | 3.6 | 0.4 | 1380 | 220-440V 50/60HZ 3 Phase |
| MD1-0.5 | 0.5 | 8/0.8 | 20 | 6*37+1 | 4.8 | 0.2/0.8 | 1380 |
| MD1-1 | 1 | 8/0.8 | 20 | 6*37+1 | 7.4 | 0.2/1.5 | 1380 |
| MD1-2 | 2 | 8/0.8 | 20 | 6*37+1 | 11 | 0.4/3 | 1380 |
| MD1-3 | 3 | 8/0.8 | 20 | 6*37+1 | 13 | 0.4/4.5 | 1380 |
| MD1-5 | 5 | 8/0.8 | 20 | 6*37+1 | 15 | 0.8/7.5 | 1380 |
| MD1-10 | 10 | 7/0.7 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 |
| MD1-16 | 16 | 3.5/0.35 | 20 | 6*37+1 | 15 | 1.5/13 | 1380 |
| MD1-20 | 20 | 3.5/0.35 | 20 | 6*37+1 | 20 | 1.5/13 | 1380 |
Features and advantages
1. CD1/MD1 type hoist can be used as a winch if with slight
modification.
2. Choose single or double lifting speed, even multi-speed possible
with frequency inverters.
3. The suitable rail for low-headroom hoist is H-type rail, and
I-type also is available.
4. The recommended rope reeving of the kind of hoist is 2/1, 4/2 or
4/1.
5. The normal rail gauge of the double-girder hoist is 1200mm,
1500mm, 1800mm, 2100mm and 2300mm or at request.
6. The normal traveling speed is 20m/min, or 30m/min, 45m/min by
request.
7. CD1 has only a normal speed which can satisfy Normal
application. MD1 provides two speeds: Normal speed and low speed.
With low speed it can do precise loading and unloading, mounding of
sand box, maintenance of machine tools, etc.

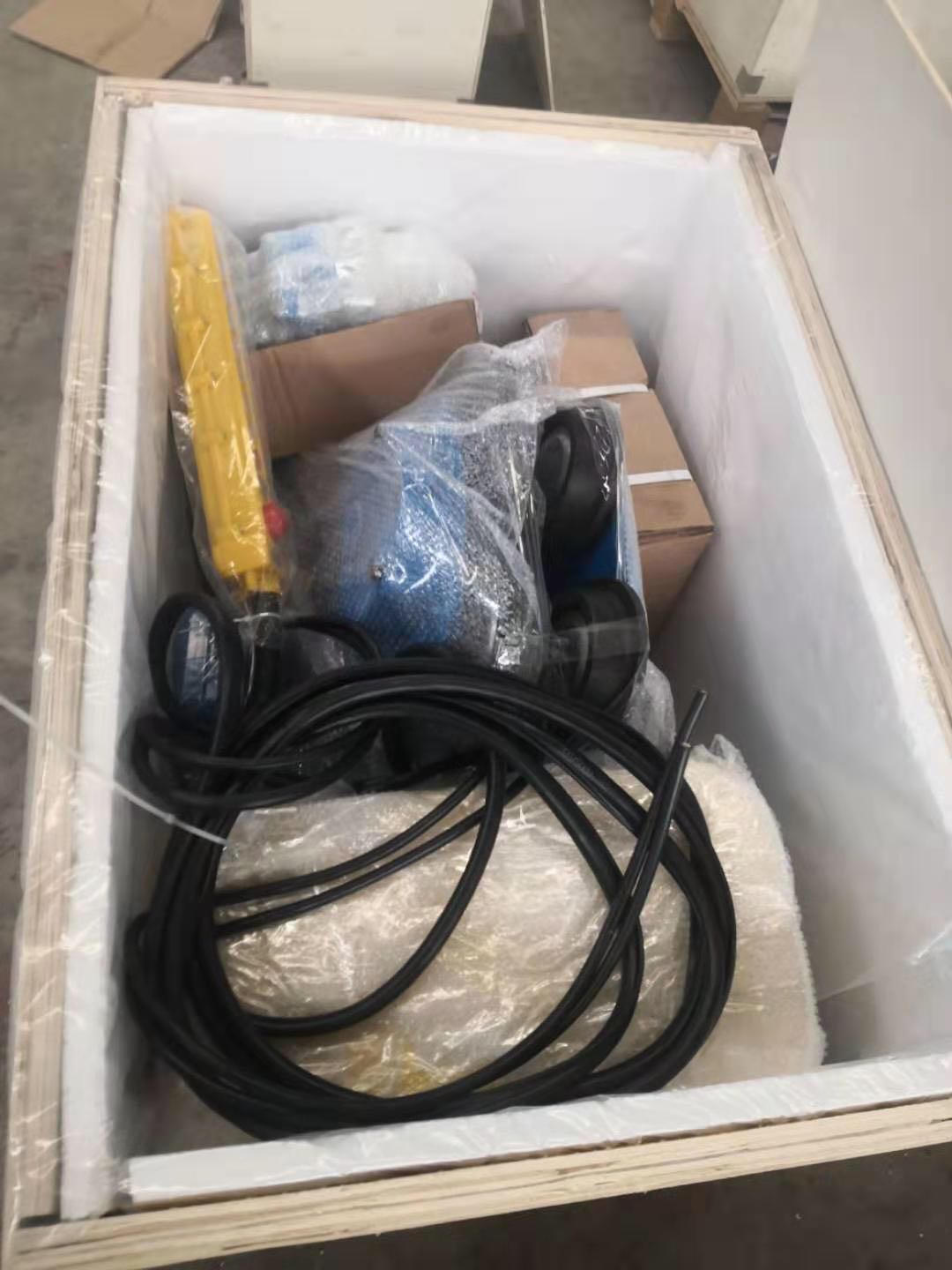

Product show:
