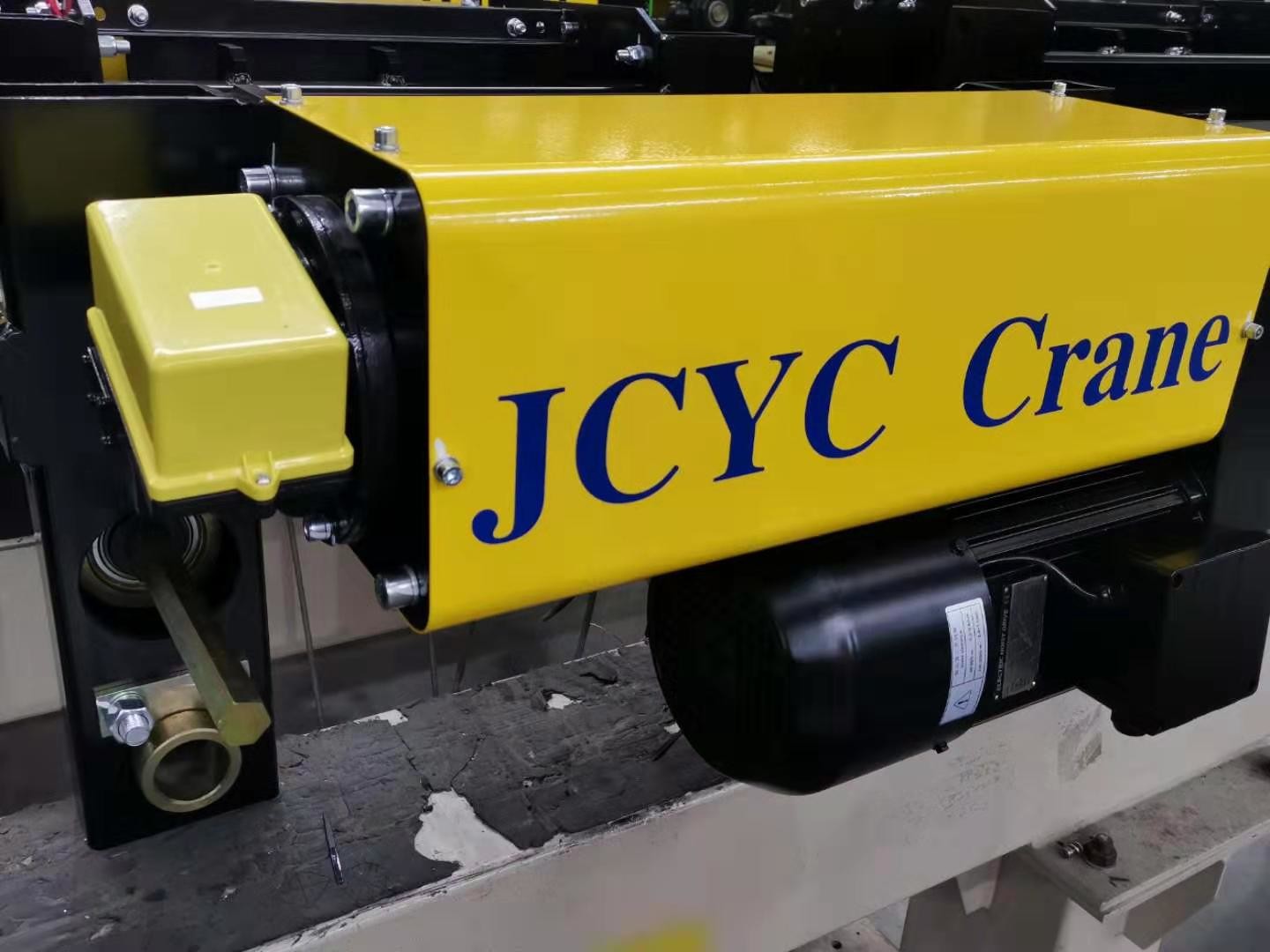

    Workshop Low Headroom Wire Rope Hoists Single Girder European Model

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : SHSL-A
    Certification : CE & ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 15 to 20 working days
    • Product Details
    • Company Profile

    Workshop Low Headroom Wire Rope Hoists Single Girder European Model

    Workshop Application European Model Low Headroom Style Design Single Girder Electric Wire Hoist


    Technique parameters


    Capacity tonLifting height mLifting speed m/minLifting motor kwTraveling speed m/minTraveling motor kwLifting System FEM/ISOTraveling System
    FEM/ISO
    I-Beam Width mm
    2t6/9/12/15/185/0.83.2/0.455/200.373MM62MM5150-300
    3.2t6/9/12/15/185/0.83.2/0.455/200.372MM52MM5150-300
    5t6/9/12/15/185/0.86.1/15/200.372MM52MM5200-350
    6.3t6/9/12/15/185/0.86.1/15/200.371AmM42MM5200-350
    8t6/9/12/15/185/0.89.5/1.55/200.753MM62MM5200-410
    10t6/9/12/15/185/0.89.5/1.55/200.752MM52MM5200-410
    12.5t6/9/12/15/184/0.612.5/25/200.751AmM42MM5200-410
    16t6/9/12/15/184/0.616/2.65/200.75x22MM52MM5300-450
    20t6/9/12/15/184/0.616/2.65/200.75x21AmM42MM5300-450
    8t20/24/28/32/368/1.312.5/25/200.752MM52MM5200-410
    10t20/24/28/32/368/1.316/2.65/200.752MM52MM5200-410
    12.5t20/24/28/32/366.3/116/2.65/200.751AmM42MM5200-410


    Description

    Compared with the traditional electric hoist, the structure of European hoist is more reasonable and the technology is more advanced. So this type of hoists is
    more and more widely used and will be the development tendency. In order to stand
    out in the group of electric wire rope hoist suppliers, we constantly improve the
    technology to produce high level hoist to be aligned with the world.


    Advantages


    1. Low headroom design, compact, strong, long service life span, save your space.
    2. Three-in-one lifting motor: AMB Germany original imported. Column rotor, low noise.
    3. Limit Switch: Cam limit model operate safety.
    4. With load limiter protection.
    5. Remote control avaliable.


    New advantages


    1. Improved travelling motor: Lower noise, more effciency
    2. Improved wire rope guider: Improved to engineering plastic material, lighter, less wear to wire rope.Workshop Low Headroom Wire Rope Hoists Single Girder European ModelWorkshop Low Headroom Wire Rope Hoists Single Girder European Model
