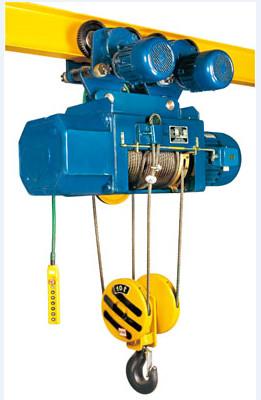

    10 T Large Capacity Electric Wire Rope Hoist Blue Color

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : HC-A & HC-B
    Certification : CE&ISO
    Price : USD negotiable per unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 pcs per month
    Delivery Time : 10 -15 working days
    • Product Details
    • Company Profile

    10 T Large Capacity Electric Wire Rope Hoist Blue Color

    10 T Large Capacity Electric Wire Rope Hoist Blue Color


    HC-A & HC-B Model, Electric Wire Rope Hoist

    It is a lifting equipment which designed on the basis of CD1/MD1.

    Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.


    Product Details:

    HC-A HC-B Electric Wire Rope Hoist


    Features and advantages:

    1. Color variety.

    2. Different power supply is available.

    3. High quality material includes Q235B Schneider Control box, 20 Chromium manganese titanium gear and 40 chromium forge hook, etc.

    4. Transmission shaft: 45#quenched and tempered steel; with thicken steel plate cover and coiling block.

    5. High quality and wide adaptation.

    6. Excellent performance.

    7. 1 year warranty

    8. Sample, OEM or ODM is ok.


    ModelLifting Capacity(t)Lifting Height(m)Lifting Speed(m/min)Running Speed(m/min)Wire Rope TypeDia. Of Wire RopeI Beam Track TypeWorking DutyLifting MotorRunning Motor
    Power(kw)R.P.M(r/min)Power SupplyPower(kw)R.P.M(r/min)Power Supply
    HC-A0.250.253-98206*193.616-22bM30.41380220-440V 50/60HZ, 3 Phase0.061400220-440V 50/60HZ, 3 Phase
    HC-A0.50.56-128206*37+14.816-28bM30.813800.21380
    HC-A116-308206*37+17.416-28bM31.513800.21380
    HC-A226-308206*37+11120a-32cM3313800.41380
    HC-A336-308206*37+11320a-32cM34.513800.41380
    HC-A556-308206*37+11525a-63cM37.513800.81380
    HC-A10106-307206*37+11525a-63cM31314000.8*21380
    HC-A16166-303.5206*37+11545a-63cM21314000.8*21380
    HC-A20206-303.5206*37+12050a-63cM21314000.8*21380
    ModelLifting Capacity(t)Lifting Height(m)Lifting Speed(m/min)Running Speed(m/min)Wire Rope TypeDia. Of Wire RopeI Beam Track TypeWorking DutyLifting MotorRunning Motor
    Power(kw)R.P.M(r/min)Power SupplyPower(kw)R.P.M(r/min)Power Supply
    HC-B16169-483.5(3.5/0.35)206*1917.550a-63cM313(13/1.5)920(1400)220-440V 50/60HZ, 3 Phase0.8*21380220-440V 50/60HZ, 3 Phase
    HC-B20209-243.5/0.3(4/0.4)206*37+12050a-63cM618.5(18.5/3)920(1400)0.8*41380
    HC-B25259-242.4/0.24(3/0.3)206*37+12050a-63cM618.5(18.5/3)920(1400)0.8*41380
    HC-B32329-242.4/0.24(3/0.3)206*37+12650a-63cM318.5(18.5/3)9201.5*41380
    HC-B50509-242.4/0.24206*37+12650a-63cM318.5(18.5/3)9201.5*41380
    HC-B80809-242.4/0.24206*37+12650a-63cM318.5(18.5/3)9201.5*41380
