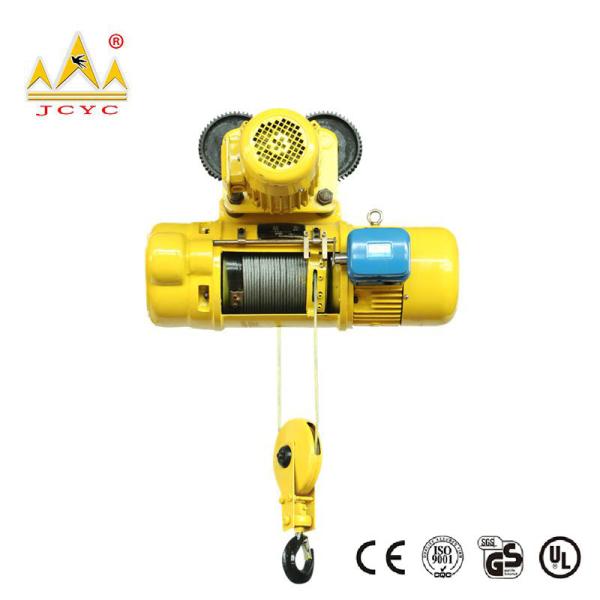

    Mobile 0.25 - 20 Ton CD Electric Wire Rope Hoist 220 V - 440 V 3 Phase

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : CD1
    Certification : CE & ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 500 sets per month
    • Product Details
    • Company Profile

    Mobile 0.25 - 20 Ton CD Electric Wire Rope Hoist 220 V - 440 V 3 Phase


    Mobile 0.25 - 20 Ton CD Electric Wire Rope Hoist 220 V - 440 V 3 Phase


    Technical Parameters


    ModelCD1 0.25TCD1 0.5TCD1 1TCD1 2TCD1 3TCD1 5TCD1 10TCD1 16TCD1 20T
    Capacity T0.250.51235101620
    Standard lifting height m3-96-126-306-306-306-309-309-189-18
    Lifting Speed m/min88888873.53.5
    Running Speed m/min202020202020202020
    Wire rope type6X9D-6X37+1D-6X37+1D-6X37+1D-6X37+1D-6X37+1D-6X37+16X37+16X37+1
    I-beam track type16-22b16-28b16-28b20a-32c20a-32c25a-63c25a-63c45a-63c50a-63c
    Loop track minium radius m0.81.51.5-42-42-42.5-52.5-93-4.63-4.6
    Power supply220V-440V,3phase,50/60HZ
    Working DutyMid M3Mid M3Mid M3Mid M3Mid M3Mid M3Mid M3Mid M2Mid M2

    Specification


    CD Wire rope electric hoist


    1. Capacity 0.25-50tons Lifting height 6-100m Duty class-M3


    2. It can mounted on single beam overhead cranes.


    3. It is essential in raising working efficiency and improving working conditions.


    4. Gantry Cranes, Jib Type CD,Eletric hoist as only one normal Speed which can satisfy normal application.


    5. It is widely used in factories, mines, haybours, wirehouses, cargo storage area and shops.


    Product show
