    Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : CD1/MD1
    Certification : CE ISO9001 manufacturing licence
    Price : negotiable
    Supply Ability : 1000pcs per month
    Delivery Time : 30 working day
    • Product Details
    • Company Profile

    Q235B Girder A4 Wire Rope Crane Hoist With Anti Rusting Paint

    Customized Capacity and Lifting Height Wire Rope Electric Winch Hoist for Lifting


    General Introduction


    CD,MD Electric Wire rope Hoist is a small-sized lifting equipment, which can be mounted on single beam bridge crane and single beam gantry crane and jib crane. With Light weight, small size, compact structure, stable operation, etc. It can also be used as a winch.
    It is widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. CD Electric Wire rope Hoist has only one normal speed, which can satisfy normal application. MD Electric Wire rope Hoist provides two speeds: normal speed and low speed. At a low speed,it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc.


    Specifications


    General Specification
    Lift Capacity
    0.25T to 32T
    Lifting Height
    6/9/12/18/36M or others
    Work Duty
    A4
    Power Supply
    380V/50HZ/3P
    Ambient temperature
    -20 ~ +40 degrees
    Electrical part
    CHINT brand, control voltage 36V AC
    Paints
    Anti-rusting paint + finishing paint + finish paint
    Main girder
    Box type, material Q235B
    End truck
    End carriage with accessories, material Q235B
    Hook
    Forged hook “C” type with safety lock
    Control method
    Remote control (TELECRANE brand) and pendent control
    Runway
    Model number P24 with accessories
    Bus Bar
    Model 3P×16MM2
    Seamless type with accessories including current collector & tensioners
    Lifting System
    Lifting speed
    8M/Min
    Lifting motor
    ZD31-4-3KW(Chinese Nanjing brand)
    Wire rope
    Ø15mm, structure 6×37+NF
    Traveling System
    Traveling speed
    20m/min
    Traveling motor
    ZDY12-4-0.4KWChinese Nanjing brand
    Travelling wheel
    /
    Main feature

    1) Excellent design.
    2) Use world-renowned brand components, including pneumatic components, electrical components and operating components.
    3) Stepless control and smooth operation.
    4) High automation and intelligent operation, no pollution
    5) Security monitoring, more extended functions.

    Technical datasheet


    ModelLifting Capacity (t)Lifting Height (m)Lifting Speed (m/min)Running Speed (m/min)Wire Rope TypeDia.of Wire Rope (mm)I Beam Track TypeWorking DutyLifting Motor
    Power(kw)R.P.M ( r/min)Power Supply
    CD1-0.250.253-98206*193.616-22bM30.41380220-440V 50/60HZ 3Phase
    CD1-0.50.56-128206*37+14.816-28bM30.81380
    CD1-116-308206*37+17.416-28bM31.51380
    CD1-226-308206*37+11120a-32cM331380
    CD1-336-308206*37+11320a-32cM34.51380
    CD1-556-308206*37+11525a-63cM37.51380
    CD1-10106-307206*37+11525a-63cM3131400
    CD1-16166-303.5206*37+11545a-63cM2131400
    CD1-20206-303.5206*37+12050a-63cM2131400

    > Motor: Hoist Motor is a taper type rotor motor with braking; it is one of the best quality motors, which has bigg er torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.

    > Gear Box: Hoist Gear Box has specially treated gears for high wear resistance. Each Geared Shaft assembly is supported on ball or roller bearings, to ensure smooth, low-friction operation.

    > Wire Rope: Hoisting ropes comply with the exporting standards. The leading rope taken by the drum does not slip sideways when slack. The factor of safety, on the nominal breaking strength of the rope is six.

    > Rope Drum: Grooved hoist Drum, seamless pipe of adequate length to be wounded in one layer and to provid eproper
    support for the rope to minimize abrasive wear is provided. Drum Shaft resolves on Ball Bearings for ensuring smooth running.


    > Electric apparatus controlling system: Model CD1 and MD1 hoist is composed of the contactor box, controlling switch, cut-off limiter, the working voltage of controlling switch is 380V, 36V or 24V(safety voltage).

    > Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.

    > Hook: The Hook Block is tested to 150 % of full load before assembly.


    Notes

    A. The standard lifting height is 6, 9, 12, 18, 24, 30 and 36 meters.

    B. The lifting speed can be single speed or double speed, even multi-speed with frequency inverters.
    C. The suitable rail for the low-headroom hoist is H-type rail, and I-type rail is also available..
    D. The recommended rope reeving of this kind of hoist is 2/1, 4/2 or 4/1.
    E. The normal traveling speed is 20m/min, and 12.5, 16, 25, 30, 45m/min by request.
    F. The normal rail gauge of the double-girder is 1200, 1500, 1800, 2100 and 2300mm.

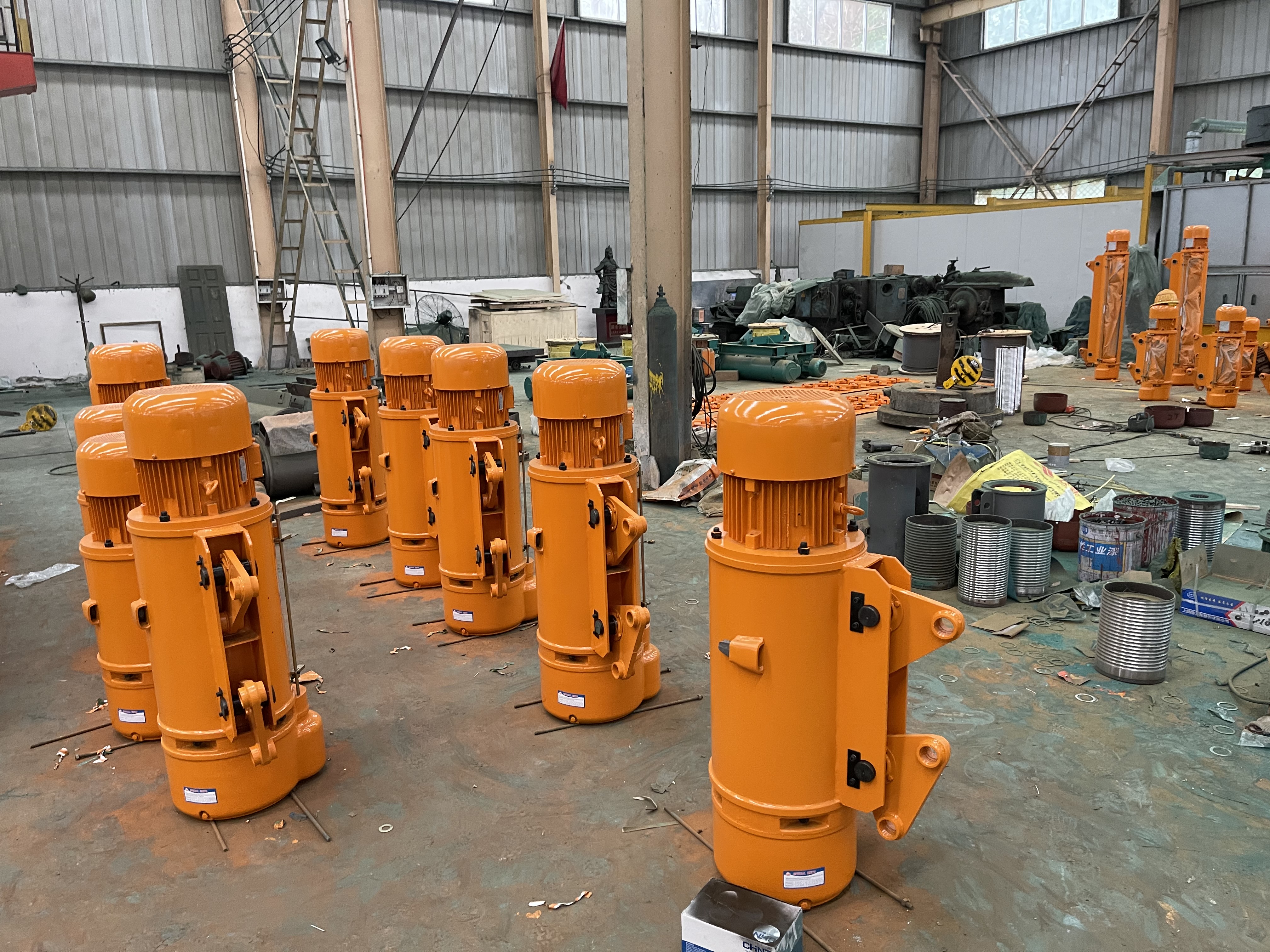

    Factory show
