Light Weight Industrial Material Lifting Electric Wire Rope Winch JM Model

Overview:

JM/JK electric winch is a cost-effective option to lift and pull heavy objects and materials in building construction, bridge construction, road construction, industrial, mine and marine. It provides easy load control using a push-button control box or remote control (a control pendant or wireless remote control). These winches come in a range of styles and configurations to accommodate your unique applications. We can also custom design and build the winch to your special requirements.

Details:

JM/JK electric winch is a small and lightweight winch machine with simple structure. It mainly consists of electric motor, rope, drum, transmission system, brake and control system.

Electric motor – for general engineering winches, IP44 protected electric motor is used.

Rope – there are two main factors involving in the rope capacity, length and diameter. Wire rope and synthetic rope are available for you to choose from.

Drum – it is a cylindrical device designed to store the rope as well as wind the rope in and out during winching operation.

Transmission system – different types of transmission system are available, including worm gearbox, spur gearbox and planetary gearbox. The selection of winch transmission is determined by your required efficiency and how much torque is going to be transmitted.

Brake – the winch can be delivered with motor brake, transmission brake and drum brake.

Control system – the winch is normally equipped with a control box that comprises up/down push buttons and emergency stop. Remote control is available for a much safer winching operation.

Technical Parameters:

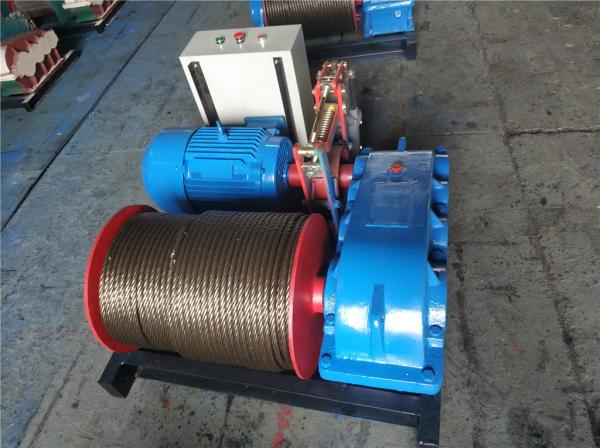

Product show:

Chongqing ShanYan Crane Machinery CO.,LTD was established in 1991 as a privately owned Chinese company and has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.

Our products are: JCYC brand electric wire rope hoists, electric chain hoists, manual chain hoists, Electric winch,bridge cranes, gantry cranes and jib cranes.

Our company has built the reputation for 20 years, acquired the SGS ISO 9001, CSA GS and CE certification, CE Mark and many other domestic crane and hoist certifications especially for the eighth Chinese National Foundation Award winning. These assured the continuing success of ShanYan crane to exceed the world standard as well as the pioneer in lifting equipments in the future.

Shanyan Crane continues to show steady growth both with its representation of overseas principles and in design and manufacturing of its own products - for example, electric wire rope hoists, chain blocks, overhead and gantry travelling cranes, lifting and hoisting attachments and jib cranes.

Our companys policy is excellent in engineering and continuing involvement with the advances in technology, Make our customer can be assured of Safety, Quality, and Efficiency!

Our goal is simple: to sell the best lifting equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business , to help others achieve their goals.

For more detailed information on our lifting equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
