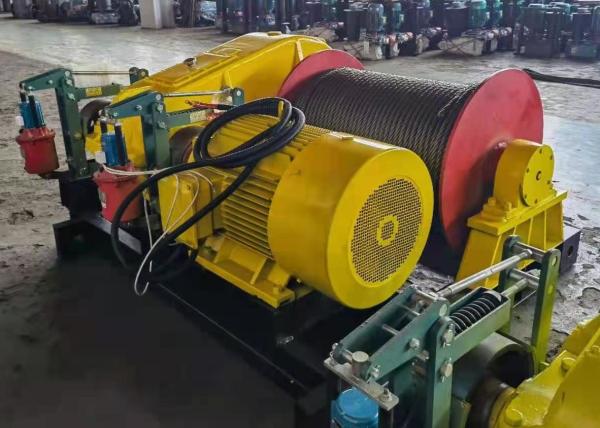

20 Ton Electric Lifting Winch 12m/Min Vehicle Recovery Winch

20 Ton Electric Mining Winch Vehicle Recovery Winch with ISO for Sale

Overview for mine winch crane

JCYC electric mining winch is a pulling vehicle recovery winch. It is certificated with ISO manufacture license. Generally speaking, winch is a kind of general-purposed lifting equipment, with safety, convenient in operation, reliable, durable, low in noise and so on character,

to be used widely in construction site, plant, mine, marine, port and wharf etc. It's a necessary equipment for horizontal or slope pulling.

Slow speed used for crane and installation industry features

Standard slow speed JM winch technical parameters

Model	Cable rated pull (kg)	Cable rated speed (m/min)	Wire rope (ɸmm)	Reduction box		Drum(mm)
Model	Cable rated pull (kg)	Cable rated speed (m/min)	Wire rope (ɸmm)	Type	Transmission ratio	Dia(ɸ)	Length
JM2	2000	12	15.53	JZQ350	23.34	260	480
JM3	3000	10	17	JZQ350	31.50	310	510
JM5	5000	11	21.50	JZQ400	23.34	400	730
JM8	8000	10	26	JZQ500	31.50	500	900
JM10	10000	9	30	JZQ650	40.17	550	1000
JM12	12000	9	32	JZQ650	40.17	650	1000
JM16	16000	6.6	36.5	JZQ750	31.50	750	1830
JM20	20000	7.7	39	JZQ750	31.50	750	1830
JM25	25000	8.5	42	JZQ750	31.50	850	1925
JM30	30000	8.5	48	JZQ850	23.34	960	1960

JK fast speed electric winch

If you need to lift and pull heavy loads with a higher efficiency, a high speed winch may be a better choice. Line speed of the winch ranges from 20m/min to 35m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.

Model	Cable rated pull(kg)	Cable rated speed(m/min)	Wire rope dia. (Φmm)	Wire rope length(m)	Drum(mm) Dia(Φ)	Motor power(kw)
JK0.5	500	20/30	Φ7.7	50/120	Φ140*300	2.2
JK1	1000	20/30	Φ9.3	70/120	Φ165*415	5.5/7.5
JK1.5	1500	20/30	Φ12.5	80/180	Φ219*450	11/15
JK2	2000	20/30	Φ12.5	80/180	Φ219*480	11/15
JK3	3000	20/30	Φ15.5	100/200	Φ219*525	15/18.5
JK5	5000	20/30	Φ21.5	100/200	Φ325*620	22/30
JK8	8000	20	Φ26	300	Φ500*900	30
JK10	10000	19	Φ30	450	Φ550*1000	45

Electric winch generally includes the following units:

1. motor.

2. Reduction gear box.

3. winch drum.

4. Brake.

5. electric control system.

6. optional rope guider.

Questions before make quotation:

1. Purpose and application of the winch, lifting or pulling?
2. Capacity?
3. Rope volume?
4. Requirement for rope speed?
5. Power supply?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.

Aftersale services:

* One year warranty from delivery;

* Free components for replacement within warranty period;

* Professional solution provider;

* Free technical support at any time;

* Customer training is available;

* On-site installation and commissioning is available;

* Sales cell number is 24 hours available.
