    380 V Electric Wire Rope Winch Lifting Height 70 m 500 KG / 1000 KG / 2000 KG

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : KCD
    Certification : CE&ISO
    Price : USD negotiate per unit
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 pcs per month
    Delivery Time : 10 -15 working days
    • Product Details
    • Company Profile

    380 V Electric Wire Rope Winch Lifting Height 70 m 500 KG / 1000 KG / 2000 KG

    380 V Electric Wire Rope Winch Lifting Height 70 m 500 KG / 1000 KG / 2000 KG


    Product Description
    KCD Multifunctional Electric Hoist is a steel wire rope hoist for lifting goods, the capacity is from 0.3T to 1T, the length of wire rope is from 30M to 60M more,the usage is pulling and lifting,except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload. Be widely used in warehouse, construction and many kinds of producing-line.
    The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.

    Adavantages of KCD electric winch

    - Fast installation.
    - Convenience in operation.
    - Low noise level.
    - Fast braking.
    - Big rope capacity – to 100 meters (that allows to apply them to raising of freights at repair of high-floor buildings).
    - Existence of a rope with a hook in a set.

    Application of KCD electric winch:

    Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on.
    This is the ideal equipment to improve working efficiency and working conditions nowadays.

    Parameters


    ModelKCD-300~600kgKCD-500~1000kgKCD-750~1500kgKCD-1~2T
    Capacity600kg1000kg1500kg2000kg
    Lifting speed7-14m/min6-12m/min 8-16m/min8-16m/min8-16m/min
    Power0.6KW1.5KW2.0KW3.0KW
    Motor R.P.M1380138013801380
    Voltage380v380v380v380v
    Lifting height60M1-100M100-150M100-200M
    Wire rope type5.0*6*19D-6*19-66*19*7.76*19*10
    Weight35kg50kg60kg110kg

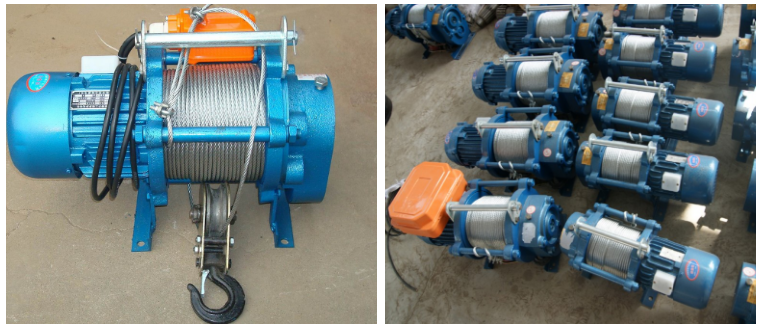

    Product show
