Brand Name : | JCYC |
Model Number : | SL-CT109 |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 10000 pcs / week |
Delivery Time : | 15 to 20 working days |

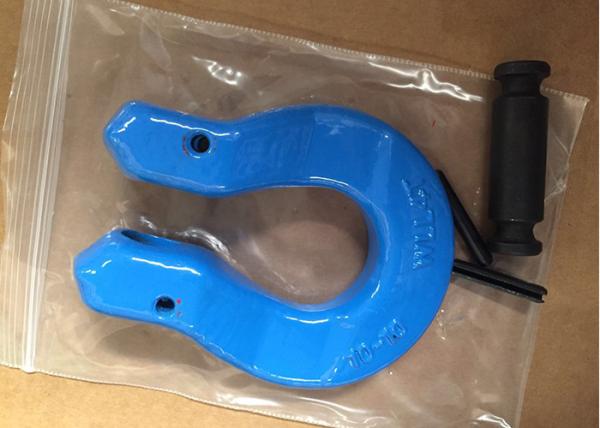

Chain Connecting Link G100 Omega Link Used in Maritime
G100 Omega Links (also called Chain Connecting Links) are commonly used in conjunction with recessed Head Rings and Chain for Chain Slings. They are great tool for rigging and other heavy-duty workloads and also popular fitting for variable type slings.
Advantages

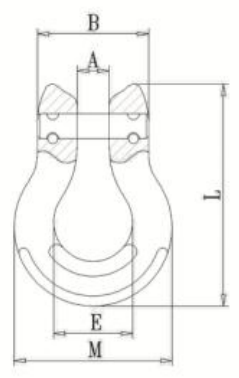

G100 Omega Link Specification
Item no. | Weight(kg) | WLL(t) | BL(t) | Dimension(mm) | ||||
A±0.5 | B±2 | E±1.5 | M±2 | L±2 | ||||
SL-CT109-1.4 | 0.12 | 1.4 | 5.6 | 8.5 | 32.5 | 20 | 44 | 55 |
SL-CT109-2.5 | 0.27 | 2.5 | 10 | 10.5 | 42 | 24 | 60 | 73.5 |
SL-CT109-4 | 0.44 | 4 | 16 | 12.5 | 48.5 | 31 | 70 | 90 |
SL-CT109-6.7 | 0.89 | 6.7 | 26.8 | 16 | 60 | 38.5 | 90 | 1.9 |
SL-CT109-10 | 1.69 | 10 | 40 | 19 | 75.5 | 51 | 112 | 141.5 |
![]() |
