304/316 Stainless Steel Hoist Hand Chain Block

    Buy cheap 304/316 Stainless Steel Hoist Hand Chain Block from wholesalers

    Buy cheap 304/316 Stainless Steel Hoist Hand Chain Block from wholesalers
    • Buy cheap 304/316 Stainless Steel Hoist Hand Chain Block from wholesalers

    304/316 Stainless Steel Hoist Hand Chain Block

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : HSZ
    Certification : CE & ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 sets per month
    Delivery Time : 15 to 30 working days
    • Product Details
    • Company Profile

    304/316 Stainless Steel Hoist Hand Chain Block

    Stainless Steel Hoist Hand Chain Block


    Product overview:


    Stainless steel chain hoist has the characteristics of safe and reliable, easy maintenance, high mechanical efficiency, small bracelet tension, light weight and easy to carry, beautiful appearance and small size, and durable, stainless steel chain hoist is suitable for factories, mines, construction sites, docks , Docks, warehouses, etc. are used to install machines and lift goods, especially for open-air and power-free operations, and show superiority.


    Parameters:

    ModelHSZ-0.5AHSZ-1AHSZ-1.5AHSZ-2AHSZ-3AHSZ-5AHSZ-7.5AHSZ-10AHSZ-15AHSZ-20AHSZ-30AHSZ-50A
    Capacity(t)0.511.52357.51015203050
    Standard lift height(m)333333333333
    Test load(KN)6.312.518.82537.562.594125187.5250375625
    Rated pull with full load(N)231309320320360414420420430420*2450*2450*2
    No. of load chain11112234681222
    Dia. of load chain567.187.110101010101010
    Dimensions(mm)A115143148152148181181181181192330410
    B136156182198182266365365485630670965
    C27031739941446563679879892089010001950
    D2527343638485757848484130
    Net weight(kg)8111718224552701251622281085
    Extra weight per meter of extra lift(kg)1.51.82.12.34.25.67.39.814.219.628.350

    Advantages:


    1. The whole machine is made of stainless steel material and forged by
    high temperature quenching;
    2. Corrosion resistance, wear resistance, high temperature resistance, low
    temperature resistance;
    3. High degree of cleanliness;
    Product show:

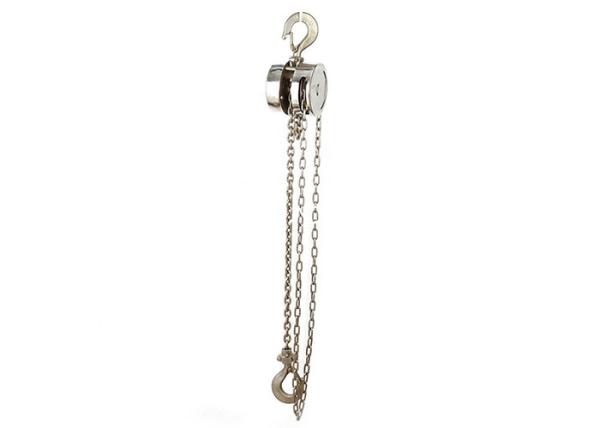

    Quality 304/316 Stainless Steel Hoist Hand Chain Block for sale
