2 Ton Single Double Sheave Snatch Lifting Pulley Block With Hook

2 Ton Heavy Duty Single Sheave Double Sheave Snatch Lifting Pulley Block With Hook

Brief Introduction:

2 Ton Heavy Duty Single Sheave Double Sheave Snatch Lifting Pulley Block With Hook is an important lifting tool with simple structure and use conveniently. It can change direction of pulley, steel rope and can lift high weight cargoes, especially series of pulley combined with windlass, mast and other lifting machinery. They are widely used in installation in construction and divides into hook type(open type) and ring type(closed type).

Advantages:

1. High-quality materials: the overall body is forged by high-quality steel .
2. Hook: thicken type hook special made for pulley.The hook is precisely forged by round steel with higher bearing capacity.
3. Lifting pulley: It is forged by high-quality steel, groove design is reasonable. With the coating treatment of the surface, it will not hurt the rope and reduce power loss.
4. High-quality directional wheel: It adopts high grade alloy steel and precisely made with hot quenching, which is durable and high strength.

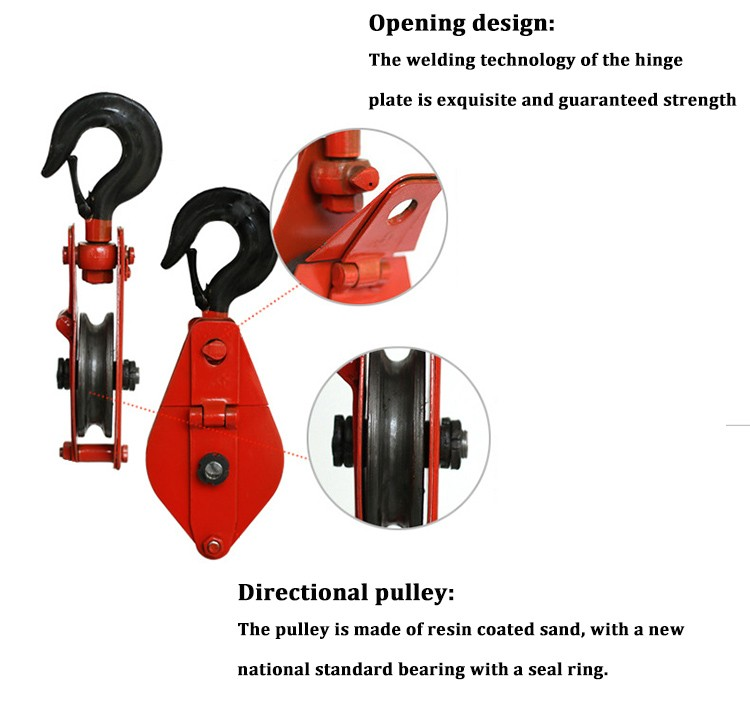

Product detail shows:

Product parameters:

Single Wheel Hook Type

Model	Rated capacity(t)	Test load(kn)	Sheave Dia.(mm)	For wire dia.(mm)	Weight(kg)
HQGK1-0.5	0.5	8	71	6.2-7.7	1.6
HQGK1-1	1.0	16	85	7.7-11	3.1
HQGK1-2	2.0	32	112	11-14	6.1
HQGK1-3.2	3.2	51.2	132	12.5-15.5	10
HQGK1-5	5	80	160	15.5-18.5	17
HQGK1-8	8	128	210	20-23	33
HQGK1-10	10	160	240	23-24.5	43
HQGK1-16	16	224	315	28-31	100
HQGK1-20	20	280	355	31-35	133

Double Wheel Hook Type

Model	Rated capacity(t)	Test load(kn)	Sheave Dia.(mm)	For wire dia.(mm)	Weight(kg)
HQGK2-1	1	16	71	6.2-7.7	3.3
HQGK2-2	2	32	85	7.7-11	6.5
HQGK2-3.2	3.2	51.2	112	11-14	11
HQGK2-5	5	80	132	12.5-15.5	18.5
HQGK2-8	8	128	160	15.5-18.5	40
HQGK2-10	10	160	210	20-23	47
HQGK2-16	16	224	240	23-24.5	75
HQGK2-20	20	280	315	28-31	125
HQGK2-32	32	448	355	31-35	200

Triple Wheel Hook Type

Model	Rated capacity(t)	Test load(kn)	Sheave Dia.(mm)	For wire dia.(mm)	Weight(kg)
HQGK3-3.2	3.2	51.2	85	7.7-11	10
HQGK3-5	5	80	112	11-14	17.5
HQGK3-8	8	128	132	12.5-15.5	33
HQGK3-10	10	160	160	15.5-18.5	53
HQGK3-16	16	224	190	17-20	70
HQGK3-20	20	280	210	20-23	125
HQGK3-32	32	448	280	26-28	140
HQGK3-50	50	700	355	31-35	300
