    Maximum 32mm G80 Lifting Chain , Polishing And Black Blackened Lifting Chains

    Ask Lasest Price
    Brand Name : JCYC/OEM
    Model Number : EN818-2 Blackened Lifting Chain
    Certification : CE ISO9001 Manufacturing licence
    Price : negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 80000 meters per month
    Delivery Time : 30 working day
    • Product Details
    • Company Profile

    Maximum 32mm G80 Lifting Chain , Polishing And Black Blackened Lifting Chains

    Maximum 32mm G80 Lifting Chain , Polishing And Black Blackened Lifting Chains


    1. Product Profile:


    EN818-2 BLACKENED LIFTING CHAIN

    Blackened lifting chain, EN818-2 Model, 6mm-22mm with self-color, polishing and black blackened


    2. Parameter:


    ItemWLL(t)B.L(t)∮(mm)L(mm)b1(mm)Min.b2(mm)Max.
    SY-C1001-66mm1.124.486±0.2418±0.57.822.2
    SY-C1001-77mm1.567±0.2821±0.69.125.9
    SY-C1001-88mm288±0.3224±0.710.429.6
    SY-C1001-1010mm3.1512.610±0.430±0.91337
    SY-C1001-1313mm5.321.213±0.5239±1.216.948.1
    SY-C1001-1616mm83216±0.6448±1.420.859.2
    SY-C1001-1818mm104018±0.954±1.623.466.6
    SY-C1001-2020mm12.55020±0.160±1.82674
    SY-C1001-2222mm156022±1.166±228.681.4
    SY-C1001-2626mm21.284.826±1.378±2.333.896.2
    SY-C1001-3232mm31.512632±1.696±2.941.6118

    3. Features and Advantages:


    1. High strength alloy steel

    2. Proof tested at 2.5 times of the working load limit

    3. Ultimate load at 4 times of the working load limit
    4. Painted, plastic coating, hot-dip galvanized and electric galvanized, etc
    5. JCYC brand or special customized marking

    6. High quality and wide adaptation.

    7. Excellent performance.

    8. 1 year warranty


    4. Photo:



    5. Company Message:


    OEM & ODM orders are both ok. Welcomes sample order to test our quality and service.

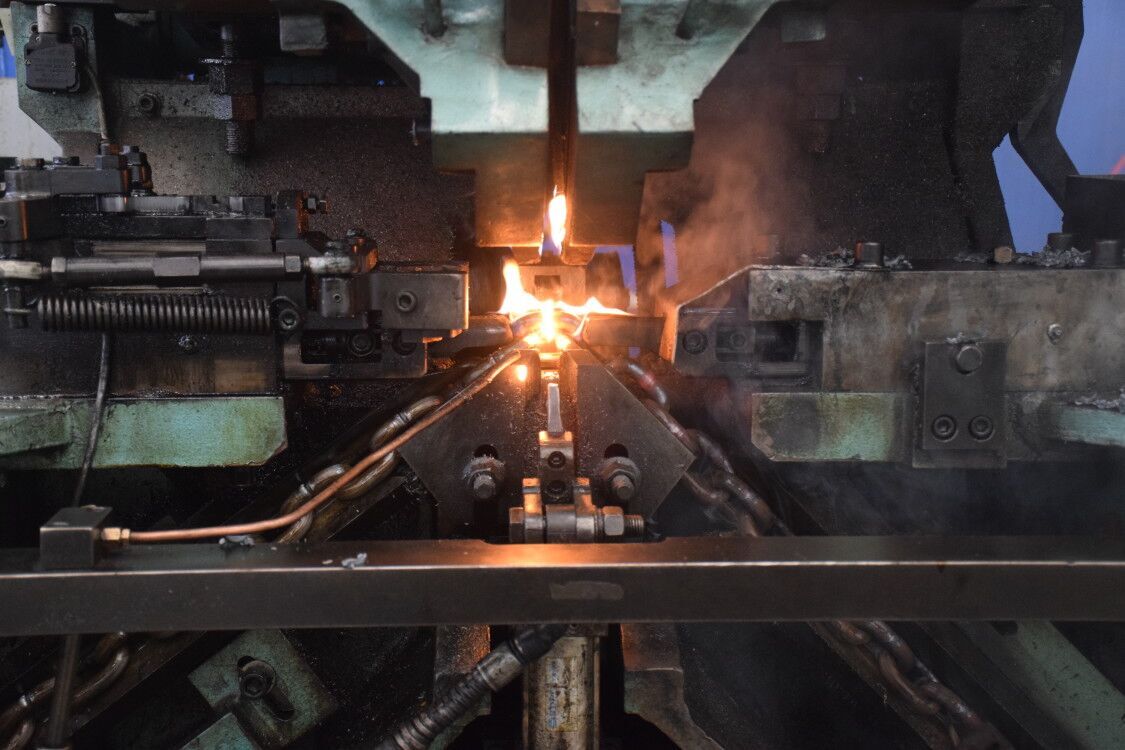

    6. Factory show:
