    Single Girder Bridge Cranes Open Gear End Carriage 20t

    Ask Lasest Price
    Brand Name : JCYC/OEM
    Model Number : GL
    Certification : CE & ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 to 200 sets per week
    Delivery Time : 15 to 20 days
    • Product Details
    • Company Profile

    Single Girder Bridge Cranes Open Gear End Carriage 20t

    General End Carriage Top Running for Single Girder Bridge Cranes with Open Gear


    Product overview


    The end carriages is an important component installed at both ends of the main beam of the overhead crane to support the bridge in the sky.
    The end carriage includes two parts, a wheel and an end beam frame. The end beam frame is composed of an upper cover plate, a web plate, and a lower cover plate. The connection plate and the angle steel are fastened with bolts. This kind end carraige use three-in-one famous brand motor for power supply to ensure it's smooth and stability moving above overhead crane.

    Advantages


    optimum travel characteristics

    • smooth starting thanks to matching drive solutions

    • high operating reliability

    • easy assembly and accessibility

    • for single and double-girder overhead travelling cranes, suspension cranes and travelling structures.


    Technical parameters


    ModelCraneRectangular
    Steel tube
    Wheel SizeMotor powerS1
    (mm)
    S2
    (mm)
    W1
    (mm)
    W2
    (mm)
    GL125-151t-7.5m150*150*6W125*600.3KW*215001300400500
    GL125-201t-11.5m20001800400500
    GL125-251t-16.5m25002300400500
    GL160-152t/3t-7.5m150*200*8W160*700.4KW*215001200400500
    GL160-202t/3t-11.5m20001700400500
    GL160-252t/3t-16.5m25002200400500
    GL160-302t/3t-22.5m30002700500600
    GL160-352t/3t-28.5m35003200600700
    GL200-205t-11.5m150*250*8W200*700.4KW*220001700400500
    GL200-255t-16.5m25002200400500
    GL200-305t-22.5m0.75KW*230002700500600
    GL200-355t-28.5m35003200600700
    GL250-2010t-11.5m200*250*8W250*800.75KW*220001600400500
    GL250-25A10t-16.5m25002100500600
    GL250-30A10t-22.5m1.1KW*230002600500600
    GL250-35A10t-28.5m35003100700800
    GL250-25B16t-16.5m200*300*8W250*801.1KW*225002100600700
    GL250-30B16t-22.5m30002600700800
    GL250-35B16t-28.5m1.5KW*235003100700800
    GL315-3020t-16.5m200*400*8W315*901.5KW*230002500700800
    GL315-3520t-22.5m35003000700800

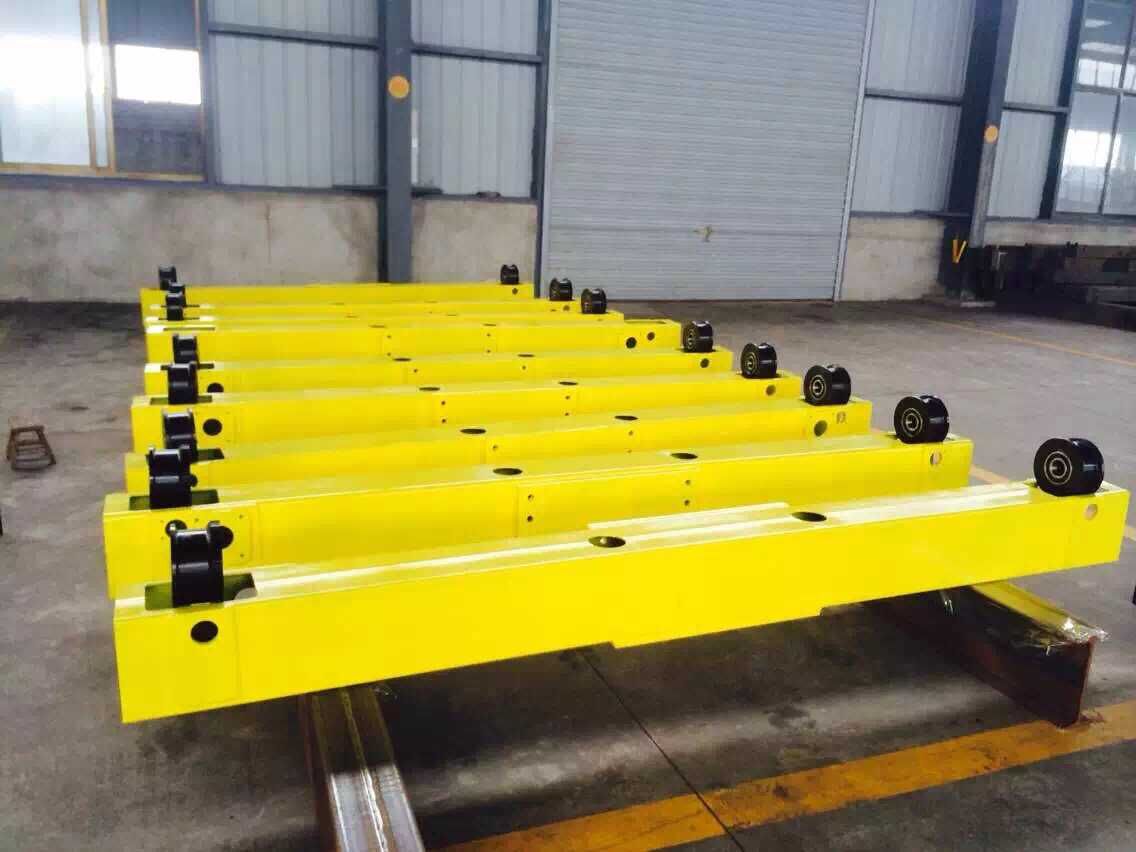

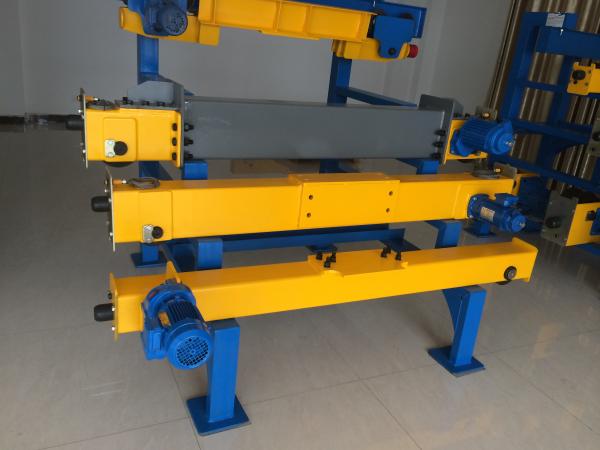

    Product show:


    Quality Single Girder Bridge Cranes Open Gear End Carriage 20t for sale
