    Lever block Low weight, small mount sizes and small lever force at rated load.

    Ask Lasest Price
    Brand Name : JCYC/OEM
    Model Number : VA
    Certification : CE ISO9001 Manufactring licence
    Delivery Time : 15working day
    • Product Details
    • Company Profile

    Lever block Low weight, small mount sizes and small lever force at rated load.

    VA LEVER BLOCK, GERMANY TECHNOLOGY

    Lever Hoists, Ratchet Lever Blocks, Crane Hoists

    Heavy Duty, High Quality Lever Blocks


    Product Details:

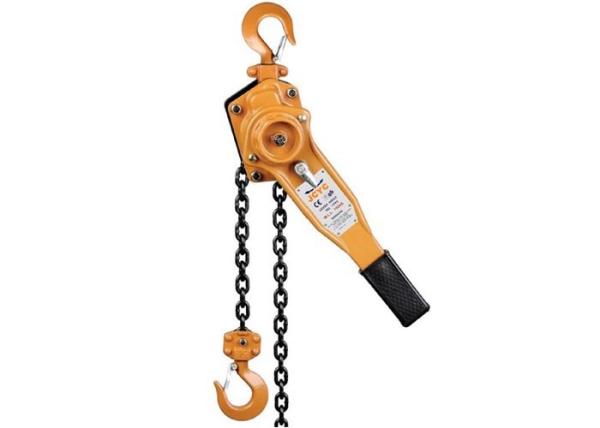

    VA Lever Block

    Features and advantages:

    1. Germany technology.

    2. Low weight, small mount sizes and small lever force at rated load.

    3. Standard premium grade Alloy load chain.

    4. 4 times safety factors with option functions like overload protection.

    5. Drop-forged and expertly heat treated hooks for great strength and long wearing.

    6. Load limiter is available at Extra cost.

    7. Wide adaptation and 1 year warranty.

    8. Sample order, OEM & ODM orders are all ok.


    ModelVA-0.75VA-1.5VA-3VA-6VA-9
    Capacityt0.751.5369
    Standard Liftm1.51.51.51.51.5
    Running Test LoadkN11.222.54575112.5
    Effort Required to Lift Rated LoadN140220320340360
    Strands of Load Chain11123
    Diameter of Load Chainmm68101010
    N.W.kg9.511.518.527.546
    Packing Measurementcm37.5*16*1852*17*2255*18.5*22.587*21*2360*42*28
    Extra Weight Per Meter of Extra Liftkg0.81.42.24.46.6
    Dimension(mm)A145175195195195
    B86100115115115
    C134150190242307
    D3848506581
    H340380490620700
    L285410410410410
    K2736384854
