    EOT Crane Overhead Crane End Carriage With Three In One Motor

    Ask Lasest Price
    Brand Name : JCYC/OEM
    Model Number : GL
    Certification : CE & ISO9001
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 to 200 sets per week
    Delivery Time : 15 to 20 days
    • Product Details
    • Company Profile

    EOT Crane Overhead Crane End Carriage With Three In One Motor

    EOT Crane Overhead Crane End Carriage of Crane With Three-in-one Motor


    Overview


    The end carriages is an important component installed at both ends of the main beam of the overhead crane to support the bridge in the sky.
    The end carriage includes two parts, a wheel and an end beam frame. The end beam frame is composed of an upper cover plate, a web plate, and a lower cover plate. The connection plate and the angle steel are fastened with bolts. This kind end carraige use three-in-one famous brand motor for power supply to ensure it's smooth and stability moving above overhead crane.

    Advantages


    • Maintenance-free crane special frequency converting three-in-one; Adjustable wheel set with less rail gnawing (patent)
    • Wear resistant and impact resistant alloy forged wheel
    • High-precision one-step wholistic processing; High strength and flexibility low alloy material

    Technical parameters


    TypeCrane spec.Rectangular
    Steel tube
    Wheel sizeMotor power
    (20m/min)
    Motor power
    (30m/min)
    S1
    (mm)
    S2
    (mm)
    W1
    (mm)
    W2
    (mm)
    EUS90-151.6t-7.5m150*150*6U90*60FA27-0.25KWFA27-0.37KW15001300400550
    EUS90-201.6t-11.5m20001800400550
    EUS90-251.6t-16.5m25002300400550
    EUS90-301.6t-22.5m30002800400550
    EUS125-153.2t-7.5m150*200*8U125*60FA27-0.37KWFA27-0.55KW15001300400550
    EUS125-203.2t-11.5m20001800400550
    EUS125-253.2t-16.5m25002300400550
    EUS125-303.2t-22.5m30002800500650
    EUS125-353.2t-28.5m35003300600750
    EUS160-156.3t-7.5m150*250*8U160*70FA37-0.55KWFA37-0.75KW15001200400550
    EUS160-206.3t-11.5m20001700400550
    EUS160-256.3t-16.5m25002200400550
    EUS160-306.3t-22.5m30002700500650
    EUS160-356.3t-28.5m35003200600750
    EUS200-2012.5t-11.5m200*250*8U200*70FA47-0.75KWFA47-1.1KW20001700500650
    EUS200-2512.5t-16.5m25002200500650
    EUS200-3012.5t-22.5mFA47-1.1KW30002700600750
    EUS200-3512.5t-28.5m35003200700850
    EUS250-2016t/20t-11.5m200*300*8U250*80FA57-1.1KWFA57-1.5KW20001600500650
    EUS250-2516t/20t-16.5m25002100600750
    EUS250-3016t/20t-22.5mFA57-1.5KW30002600700850
    EUS250-3516t/20t-28.5m35003100700850

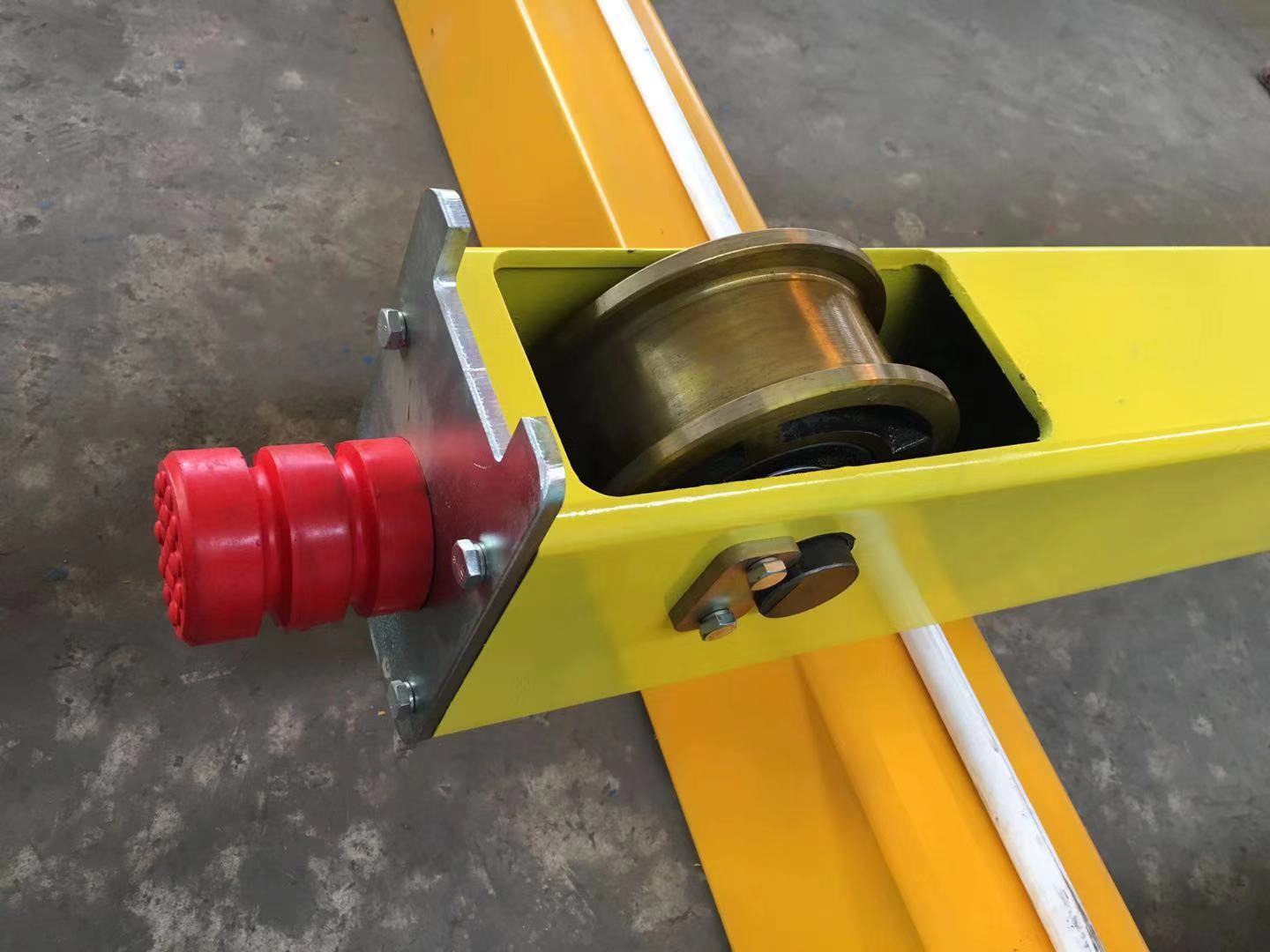

    Product show:

    Quality EOT Crane Overhead Crane End Carriage With Three In One Motor for sale
