Single or Double Plies Colorful Ring Webbing Sling 1t to 50t

Product Categories

Chongqing Shanyan Crane Machinery Co., Ltd.

Contact Now

Ask Lasest Price
Brand Name :	JCYC, OEM
Model Number :	Single or Double Ply High Strength Round Lifting Slings
Certification :	CE ISO9001 Manufacturing licence
Price :	negotiable
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	80000 meters per month
Delivery Time :	about 15 workdays if no store

Add to Cart

Product Profile:

Colorful Ring Webbing Slings

Features and Advantages:

1. Can be single ply or double plies; sewing method is different.

2. The specification can be adjusted according to customers' needs.

3. Loading surface is wide to reduce the weight at each loading point.

4. No damages to tender objects.

5. Various loading method.

6. High strength/weight ratio.

7. Anti-abrasion and anti-incision protection sleeve can be attached.

8. Has special label working load is differentiated by colors according to international standard.

9. Light and soft, can be used in small narrow space.

10. Anti-abrasion is enhanced in PU processing.

11. Non-conductive, no danger of electric stroke.

12. In compliance with European standard En1492-1:2000 and Chinese standard JB/T8521-2007.

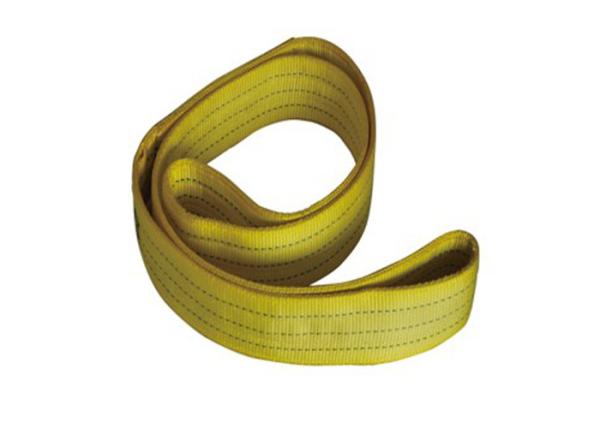

Photo:

Parameter:

Max. SWL=Mode Coefficient PX Working Load Limit								Max, SWL of Lifting Method
Code	Color	Single Max. Working Load Limit						2-Lecs Max. Load Limit				Approx. Width (mm)			Min. (m)	Max. Length (m)
		Upright	Choked	Β				Upright	Choked	Upright	Choked
		Upright	Choked	0-7°	7-45°	7-45°	0-60°	45°	45°	45-60°	45-60°

		1	0.8	2	1.4	1	0.7	1.4	1.12	1	0.8	5:1	6:1	7:1
JCYC-LS104-01	Purple	1000	800	2000	1400	1000	700	1400	1120	1000	800	25	25	30	1	100
JCYC-LS104-02	Green	2000	1600	4000	2800	2000	1400	2800	2240	2000	1600	50	50	60	1	100
JCYC-LS104-03	Yellow	3000	2400	6000	4200	3000	2100	4200	3360	3000	2400	75	75	90	1	100
JCYC-LS104-04	Grey	4000	3200	8000	5600	4000	2800	5600	4480	4000	3200	100	100	120	1	100
JCYC-LS104-05	Red	5000	4000	10000	7000	5000	3500	7000	5600	5000	4000	125	125	150	1	100
JCYC-LS104-06	Brown	6000	4800	12000	8400	6000	4200	8400	6720	6000	4800	150	150	180	1	100
JCYC-LS104-07	Blue	8000	6400	16000	11200	8000	5600	11200	8960	8000	6400	200	200	240	1	100
JCYC-LS104-08	Orange	10000	8000	20000	14000	10000	7000	14000	11200	10000	8000	250	250	300	1	100
JCYC-LS104-09	Orange	12000	9600	24000	16800	12000	8400	16800	13440	12000	9600	300	300	300	3	100
JCYC-LS104-10	Blue	15000	12000	40000	28000	15000	14000	28000	22400	15000	12000	200	200	240	3	100
JCYC-LS104-11	Orange	20000	16000	60000	42000	20000	21000	42000	33600	20000	16000	250	250	300	3	100
JCYC-LS104-12	Orange	25000	20000	50000	35000	25000	17500	35000	28000	25000	20000	300	300	300	3	100
JCYC-LS104-13	Orange	30000	24000	60000	42000	30000	21000	42000	33600	30000	24000	300	300	300	3	100
JCYC-LS104-14	Orange	40000	32000	80000	56000	40000	28000	56000	44800	40000	32000				3	100
JCYC-LS104-15	Orange	50000	40000	100000	70000	50000	35000	70000	56000	50000	40000				3	100

Warm Note:

OEM, ODM, sample, trial and mixed orders are all ok. Welcomes testing our quality and service.
