    Bow Shackle With High Strength Forged Carbon Steel Die Forging 2 Ton - 120 Ton

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : G209
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000 pcs / week
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Bow Shackle With High Strength Forged Carbon Steel Die Forging 2 Ton - 120 Ton

    Bow Shackle With High Strength Forged Carbon Steel Die Forging 2 Ton - 120 Ton

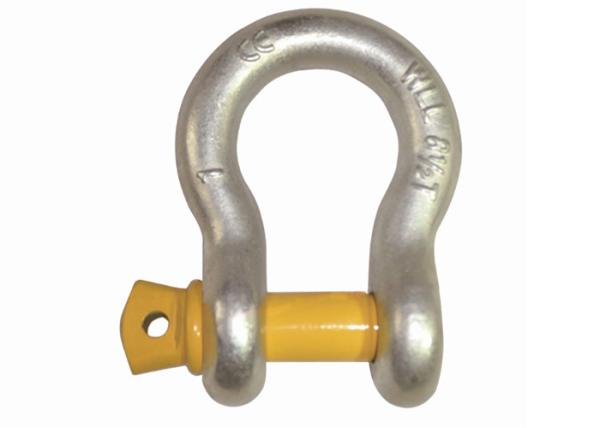

    G209 Bow Shackle


    High strength forged carbon steel die forging

    The test of working load limit is 2 times

    Breakage test

    100% magnetic particle inspection

    Breaking load limit is 4 times


    Bow Shackle With High Strength Forged Carbon Steel Die Forging 2 Ton - 120 Ton

    G209 Bow Shackle
    WLL. tonA mmB mmC mmD mmE mmF mmG mm
    220164612332958
    3.2527196116433875
    4.75322271.519514689
    6.5382584225853102
    8.543289525.56860.5119
    9.54832108297468.5134
    125036119328176145
    13.55538133359084160
    1760.542146389792173
    25735017844.5127106.5216
    35835619751146122248
    551037026763181144.5307
    851308032580210165370
    12014595.541095215198405
    Quality Bow Shackle With High Strength Forged Carbon Steel Die Forging 2 Ton - 120 Ton for sale
