Supply Heavy Duty 0.5-60Ton Electric Chain Hoist with Trolley FEC
Chain
Application:
The electric chain hoist is an important lifting equipment in
material handling. It is widely used in construction, mining,
maritime, factory, warehouse, logistics, port and so on.
Main advantages:
Structure Features
The body chooses to use high strength tensile shell or die casting
aluminum case, extrusion molding process thin-walled precision
manufacturing, small size, low weight, high strength.
Seperate speed-adjusting system, seal the level 2 coaxial
transmission speed gear mechanism with long-service oil bath
lubrication system.
The electric hoist powder metallurgy clutch is used for overload
protection device. The brake disc adopts dc magnetic field, braking
torque, stable and rapid, the noise is small.
Lifting motor
Using high performance lifting motor which can last to work 30
minutes with full loading, and has Grade B insulation.
Lifting chain
The chain of the low carbon steel alloy makes the chain more
toughness, strong and wear-resisting, ensuring the safety during
work.
Lifting chain hardened surface can prevent the damage of the core
materials and products to soften, thus make lifting chain keep for
a long time high performance.
The chain can be also extended according to the request of
customers' order, and allows you to use more conveniently.
The chain is equipped with chain bag which makes the electric hoist
looks clean, tidy and beautiful. the chain bag contains antirust
oil, so the chain is not easy to rust , so as to extend the service
life of the electric hoist.
Double brake system
Two sets of brake systems, not only reduce the brake failure
possibility, but also increase its safety and benefit for heat
radiation.
Variable speed tooth
The standard chain electric hoist mainly use the reliable helical
gear, it can prolong service lifting through reducing the meshing
impact and vibration.
Special design of gear enhance the durability of gear, And gear is
made of alloy steel, through professional fine heat treatment
obtain the biggest strength.
Control handle with low voltage
The standard low-voltage on chain hoist handle is 24v-36v. Low
voltage can effectively protect the operator to prevent a shock
damage.(24V-36V is compulsive National standard.
Product technical data:
| Model | Lifting Capacity(t) | Lifting Height(m) | Lifting Speed(m/min) | Running Speed(m/min) | Lifting Motor | Running Motor | I-Beam(mm) |
| Power(kw) | R.P.M(r/min) | Power Supply | Power(kw) | R.P.M(r/min) | Power Supply |
| SY-A0.5-1 | 0.5 | 3-9 | 6.8 | 12.2 | 0.75 | 1440 | 220-440V 50/60HZ 3Phase | 0.12 | 1440 | 220-440V 50/60HZ 3Phase | 58-130 |
| SY-A1-1 | 1 | 3-9 | 6.6 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 80-160 |
| SY-A1-2 | 1 | 3-9 | 3.4 | 10/20 | 0.75 | 1440 | 0.4 | 1440 | 80-160 |
| SY-A2-1 | 2 | 3-9 | 6.6 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 82-178 |
| SY-A2-2 | 2 | 3-9 | 3.3 | 10/20 | 1.5 | 1440 | 0.4 | 1440 | 82-178 |
| SY-A3-1 | 3 | 3-9 | 5.4 | 10/20 | 3.0 | 1440 | 0.4 | 1440 | 100-180 |
| SY-A3-2 | 3 | 3-9 | 4.4 | 11/21 | 3.0 | 1440 | 0.4 | 1440 | 100-178 |
| SY-A3-3 | 3 | 3-9 | 2.4 | 11/21 | 1.5 | 1440 | 0.4 | 1440 | 110-178 |
| SY-A5-2 | 5 | 3-9 | 2.7 | 10/20 | 3.0 | 1440 | 0.75 | 1440 | 110-180 |
| SY-A7.5-3 | 7.5 | 3-9 | 1.8 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 120-180 |
| SY-A10-4 | 10 | 3-9 | 2.7 | 10/20 | 3*2 | 1440 | 0.75 | 1440 | 150-202 |
| SY-A15-6 | 15 | 3-9 | 1.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 |
| SY-A20-8 | 20 | 3-9 | 1.4 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 |
| SY-A25-8 | 25 | 3-9 | 1.1 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 |
| SY-A30-10 | 30 | 3-9 | 0.9 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 |
| SY-A35-16 | 35 | 3-9 | 0.7 | 10/20 | 3*2 | 1440 | 0.75*2 | 1440 | 150-220 |

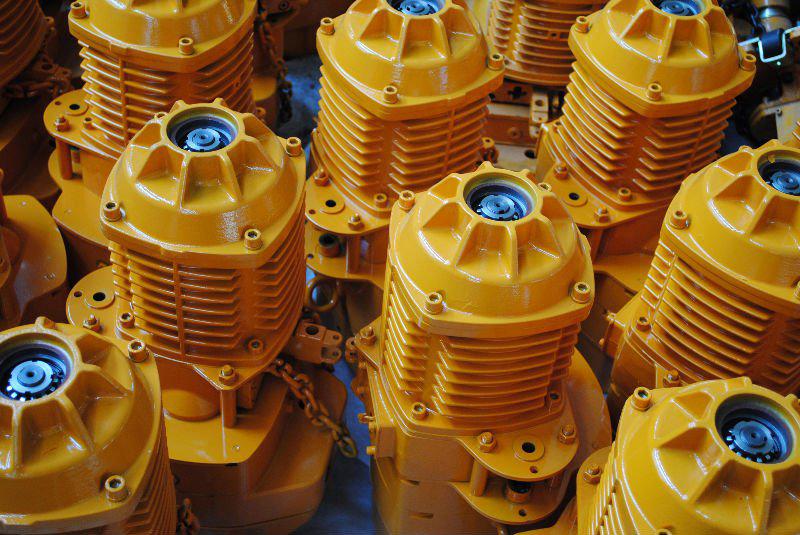

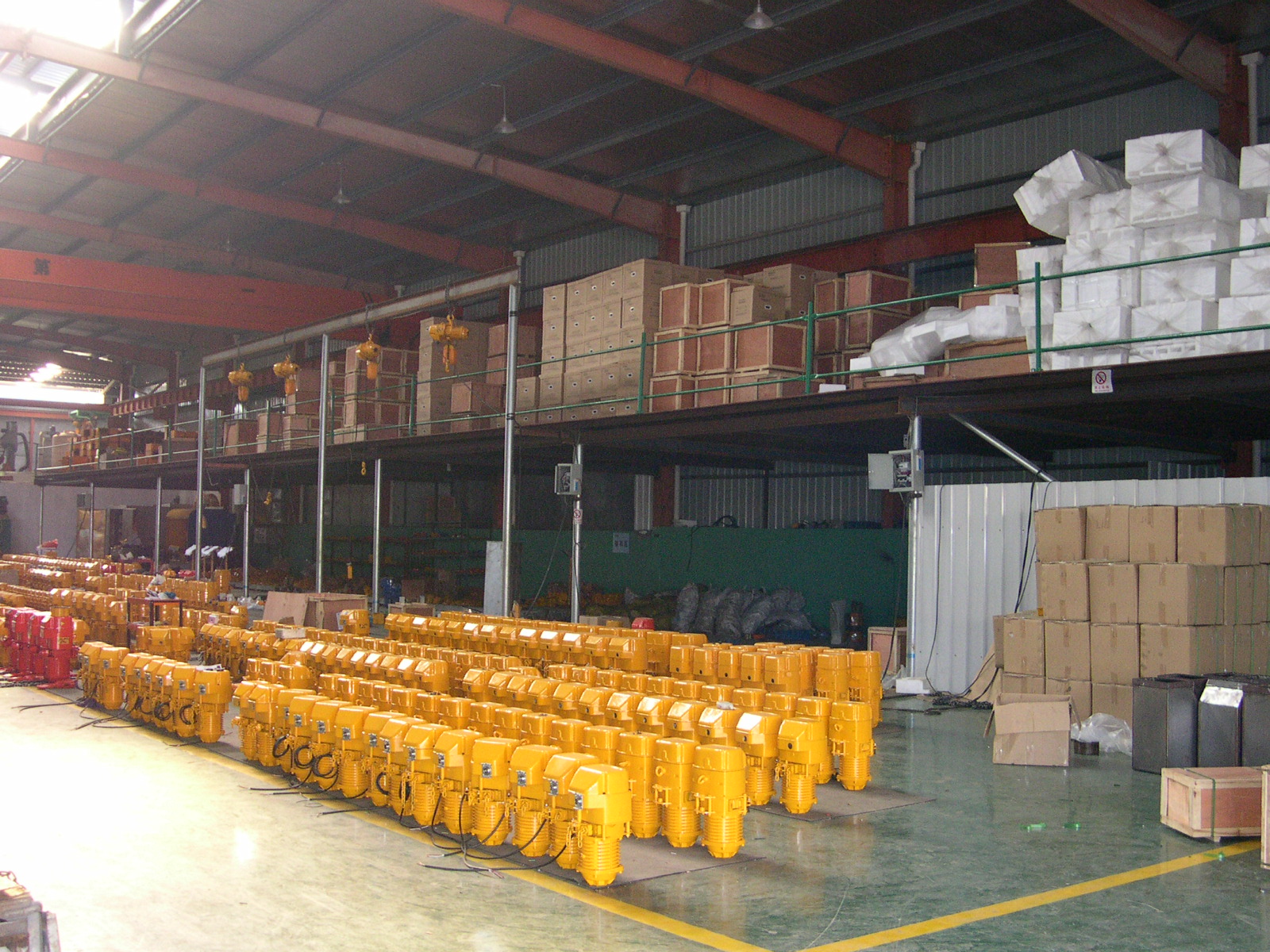

Factory show:
