    40m/Min Electric Wire Rope Winch 35t Lifting For Mine

    Ask Lasest Price
    Brand Name : JCYC/OEM
    Model Number : JK
    Certification : CE&ISO
    Price : USD negotiate per unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P, D/A
    Supply Ability : 500 pcs per month
    Delivery Time : 10 -15 working days
    • Product Details
    • Company Profile

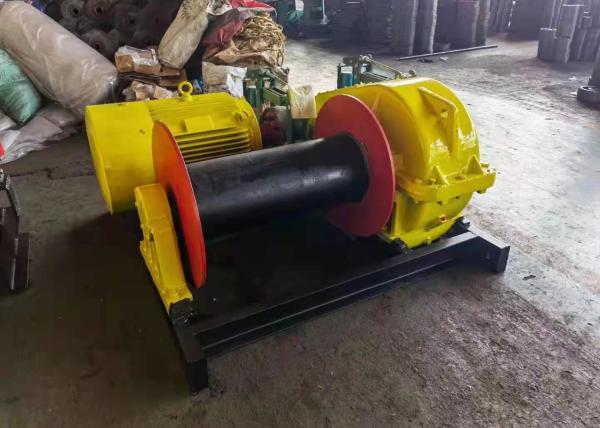

    40m/Min Electric Wire Rope Winch 35t Lifting For Mine

    Fast Speed 40m/min Electric Winch for Mine


    Brief Introduction


    JK fast series Winch mainly used for large and oversize concrete of steel installation and disassembly of mechanical equipment.This structural characteristic is wirerope orderly arrangement lifting is safe and realiable.It is suitable for bridge port and ect road and bridge engineering and large factories and mines engineering equipments installation.


    JK fast speed electric winch


    If you need to lift and pull heavy loads with higher efficiency, a high speed winch will be a better choice. Line speed of the winch ranges from 20m/min to 40m/min. This type of winch equipment helps you do the job quickly and safely. It can also be specifically designed to fit on cranes and derricks, replacing an electric hoist as the main hoisting mechanism.


    ModelCable rated pull(kg)Cable rated speed(m/min)Wire rope dia. (Φmm)Wire rope length(m)Drum(mm) Dia(Φ)Motor power(kw)
    JK0.550020/30Φ7.750/120Φ140*3002.2
    JK1100020/30Φ9.370/120Φ165*4155.5/7.5
    JK1.5150020/30Φ12.580/180Φ219*45011/15
    JK2200020/30Φ12.580/180Φ219*48011/15
    JK3300020/30Φ15.5100/200Φ219*52515/18.5
    JK5500020/30Φ21.5100/200Φ325*62022/30
    JK8800020Φ26300Φ500*90030
    JK101000019Φ30450Φ550*100045

    Advantages


    1.High safety and precision;
    2.Safety protection device;
    3.Starting and stopping smoothly;
    4.Reasonable structure, easy maintenance;
    5.Top quality with competitive price.


    Questions before make quotation:

    1. Purpose and application of the winch, lifting or pulling?
    2. Capacity?
    3. Rope volume?
    4. Requirement for rope speed?
    5. Power supply?
    7. Any other specific request such as double speed, additional equipment?
    The more detail, the more accurate quotation.
