    Crane End Carriage Motor Traveling End Truck Carriage for Single / Double Girder Crane

    Crane End Carriage Motor Traveling End Truck Carriage for Single / Double Girder Crane


    Product Brief Introduction:


    The JCYC brand end carriages is an important component installed at both ends of the main beam of the overhead crane to support the bridge in the sky.
    The end carriage includes two parts, a wheel and an end beam frame. The end beam frame is composed of an upper cover plate, a web plate, and a lower cover plate. The connection plate and the angle steel are fastened with bolts.


    Product Installation:


    1. Connecting Plate Installation

    Put the connection plate on the top of end carriage, Align the

    Positioning Pin Hole and put the flexible positioning pins of onto

    the holeφ10x30 into the hole to fix the connection plate.Connect

    the connection plate and end carriage with bolt M16x70.


    2. Wheel Installation

    Press the two bearings into the two sides of wheels and then

    put it into the end carriage; Fix the wheels with shaft and shaft sleeve.

    Fix the shaft with the shaft platen; Fix the shaft platen with Bolts.


    3. Seal Plate and Rubber buffer installation

    Install the Rubber buffer onto seal plate and then fixed the seal plate onto the two ends of the end carriage with bolts.


    4. Current Collector Mounting Plate Installation

    This mounting plate is used for Current Collector Bracket installation at site.Remove the mounting plate when install the Current Collector Bracket, Welding the bracket onto the mounting plate and then fix the mounting plate onto the End carriage with Bolts.


    Product Technical Parameters:



    ModelCraneRectangular
    Steel tube
    Wheel SizeMotor powerS1
    (mm)
    S2
    (mm)
    W1
    (mm)
    W2
    (mm)
    GL125-151t-7.5m150*150*6W125*600.3KW*215001300400500
    GL125-201t-11.5m20001800400500
    GL125-251t-16.5m25002300400500
    GL160-152t/3t-7.5m150*200*8W160*700.4KW*215001200400500
    GL160-202t/3t-11.5m20001700400500
    GL160-252t/3t-16.5m25002200400500
    GL160-302t/3t-22.5m30002700500600
    GL160-352t/3t-28.5m35003200600700
    GL200-205t-11.5m150*250*8W200*700.4KW*220001700400500
    GL200-255t-16.5m25002200400500
    GL200-305t-22.5m0.75KW*230002700500600
    GL200-355t-28.5m35003200600700
    GL250-2010t-11.5m200*250*8W250*800.75KW*220001600400500
    GL250-25A10t-16.5m25002100500600
    GL250-30A10t-22.5m1.1KW*230002600500600
    GL250-35A10t-28.5m35003100700800
    GL250-25B16t-16.5m200*300*8W250*801.1KW*225002100600700
    GL250-30B16t-22.5m30002600700800
    GL250-35B16t-28.5m1.5KW*235003100700800
    GL315-3020t-16.5m200*400*8W315*901.5KW*230002500700800
    GL315-3520t-22.5m35003000700800

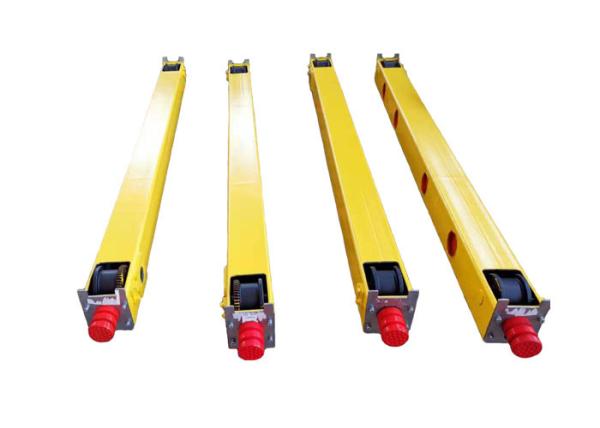

    Product show:
