    Low Headroom Chain Hoist

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : SY-L
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 pcs per month
    Delivery Time : About 12 workdays if no store
    • Product Details
    • Company Profile

    Low Headroom Chain Hoist

    1t - 15t Leading Electric Crane Low Headroom Chain Hoist 3m Standard Lifting Height


    Product Description:


    Usage:


    Low-headroom design, Enclosed in-line gear train with oil bath lubrication, Mechanical load brake and Electric motor brake

    Widely used in factories, mines, harbours, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.


    Features and advantages:


    1. High performance hoist delivers exceptional reliability in even the most demanding applications.

    2. Maximize overhead clearance and minimizes beam-to-hook distance.

    3. Protect loads and production machinery from unnecessary contact and damage.

    4. Specified by the military because all critical welds are magnetic particle inspected.

    5. Top-quality components and design features provide operator peace-of-mind.


    Parameter:


    Model

    Lifting Capacity

    (t)

    Lifting Speed

    (m/min

    Running Speed(m/min)Lifting MotorRunning Motor

    I-Beam

    (mm)

    Single ChainDouble ChainsSingle ChainDouble Chains

    Power

    (kw)

    R.P.M

    (r/min)

    Power Supply

    Power

    (kw)

    R.P.M

    (r/min)

    Power SupplySingle ChainDouble Chains
    SY-L0.50.57.8/12.2/0.751440220-440V 50/60HZ 3Phase0.121440220-440V 50/60HZ 3Phase58-130/
    SY-L116.83.910/2010/201.514400.41440100-160110-160
    SY-L226.83.410/2010/203.014400.4144082-178120-160
    SY-L335.63.410/2010/203.014400.41440110-180120-180
    SY-L55/2.8/10/203.014400.751440/120-180
    SY-L7.57.51.8(3 chains)10/20(3 chains)3.014400.751440128-180(3 chains)
    SY-L10102.7(4 chains)10/20(4 chains)3.0*214400.751440110-180(4 chains)

    Warm Note:

    OEM, ODM, sample, trial and mixed orders are all welcomed to test our quality and service.


    Photo:

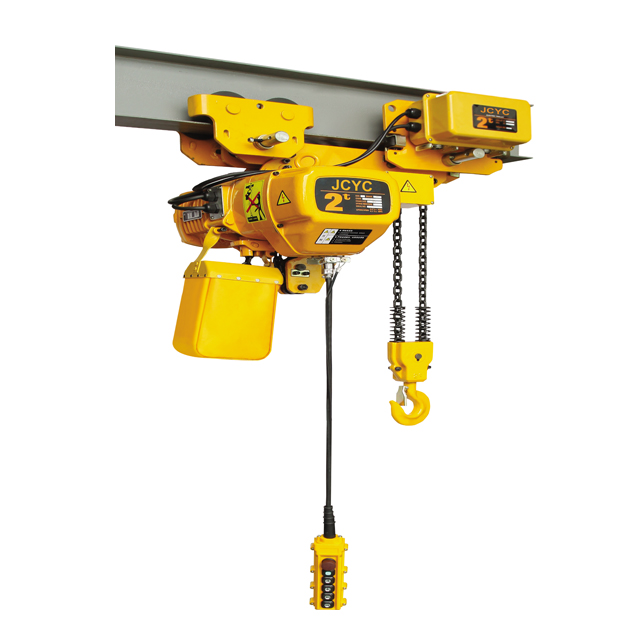

    Quality Low Headroom Chain Hoist for sale
