500kg 1000kg 2000kg KCD Multi Function Electric Wire Rope Winch Hoist For Small Construction

Product description:

KCD type electric hoist winch is a kind of electric winch, widely used in the construction industry, with the feature of stable and reliable operation, hoisting height is can reach 100 meter.

Applies to industrial enterprise, mining company, normal factory, workshop, railway, sea port, warehouse, stock ground and so on. This KCD winch is for any angle of handing, lifting loading and unloading, it is the common machinery for lifting work in factory and warehouse and individuals.

Adavantages of KCD electric winch:

- Fast installation.
- Convenience in operation.
- Low noise level.
- Fast braking.
- Big rope capacity - to 100 meters (that allows to apply them to raising of freights at repair of high-floor buildings).
- Existence of a rope with a hook in a set.

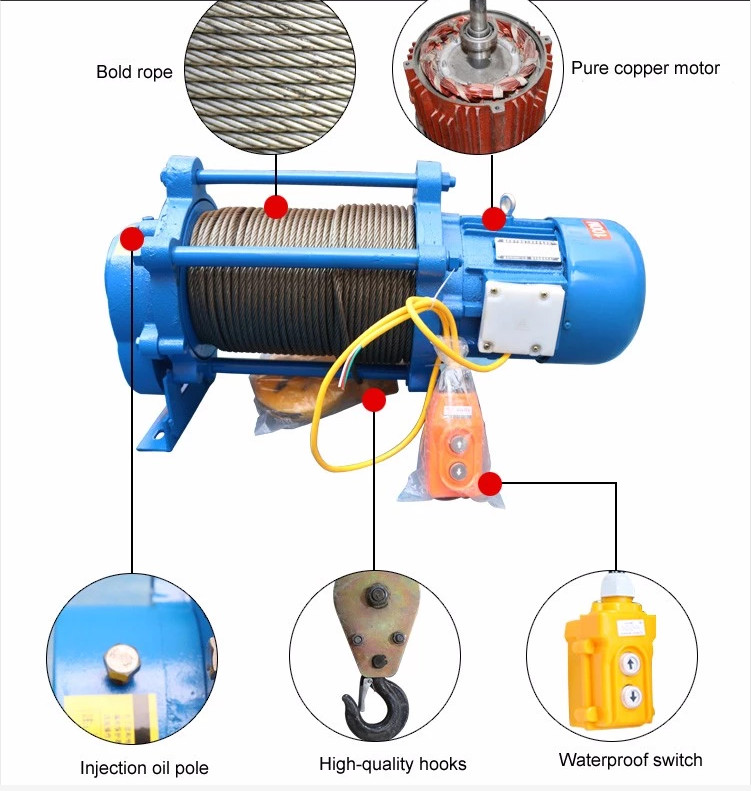

Product configuration:

Alluminum shell electric hoist winch

Wire Rope Fixing: No escape of wire rope from the drum by means of P.T.screw device.

Drum Transmission: The shaft direct friving drum provides rope replacement and alteration

of rotation with easy.

Electromagnetic: Designed for both static and dynamic loading. Brake will automatically apply

in the event of power cut.Large friction surface area. No adjustments or serving requirement.

Gear Box: Provides strength.durability and non-worry of breakage of structure.

Special Motor: Insulated B,with the features of big start torque,small inertia,lower temperature

rise,it can work frequenntly for a long time.

Driving Gear: The heat treated gear with bearings features durable performance and anti-wear.
Machine Fixture: It is made of super armor plate.used for suspender,lifter and girder.

Technical parameters:

Model	KCD-300~600kg	KCD-500~1000kg	KCD-750~1500kg	KCD-1~2T
Capacity	600kg	1000kg	1500kg	2000kg
Lifting speed	7-14m/min	6-12m/min 8-16m/min	8-16m/min	8-16m/min
Power	0.6KW	1.5KW	2.0KW	3.0KW
Motor R.P.M	1380	1380	1380	1380
Voltage	380v	380v	380v	380v
Lifting height	60M	1-100M	100-150M	100-200M
Wire rope type	5.0*6*19	D-6*19-6	6*19*7.7	6*19*10
Weight	35kg	50kg	60kg	110kg

Questions before make quotation:

1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional equipment?
The more detail, the more accurate quotation.
