25 Ton Endless Wire Rope Cable Electric Power Winch
Product introduction:
JM/JK electric winch is a small and light weight winch machine with
simple structure. It mainly consists of electric motor, rope, drum,
transmission system, brake and control system.
Electric motor - for general engineering winches, IP44 protected electric motor
is used.
Steel rope - there are two main factors involving in the rope capacity,
length and diameter. Wire rope and synthetic rope are available for
you to choose from.
Drum - it is a cylindrical device designed to store the rope as well as
wind the rope in and out during winching operation.
Transmission system - different types of transmission system are available, including
worm gearbox, spur gearbox and planetary gearbox. The selection of
winch transmission is determined by your required efficiency and
how much torque is going to be transmitted.
Brake - the winch can be delivered with motor brake, transmission brake
and drum brake.
Control system - the winch is normally equipped with a control box that comprises
up/down push buttons and emergency stop. Remote control is
available for a much safer winching operation.
JM slow speed electric winch
The slow speed winch, as the name implies, works at a slow speed
that ranges from 5m/min to 20m/min. This type of winch provides
more precise load control and accurate positioning. It is ideal for
various engineering projects. With marine duty design, the winch
can also be used on the boat and on the shore for anchoring,
mooring or towing purposes.
- Loading capacity: 0.5~200 t
- Rope capacity: 10~2000 m
- Working speed: 5~20 m/min;(single speed or dual speed)
- Power supply: 220-690V, 50/60HZ, 3Phase
| Model | Cable rated pull(kg) | Cable rated speed(m/min) | Wire rope (Φmm) | Wire rope length(m) | Drum(mm) Dia(Φ) | Motor power(kw) |
| JM0.5 | 500 | 15 | Φ7.7 | 50/120 | Φ140*300 | 2.2 |
| JM1 | 1000 | 15 | Φ9.3 | 70/120 | Φ165*415 | 5.5 |
| JM1.5 | 1500 | 15 | Φ12.5 | 80/180 | Φ219*450 | 7.5 |
| JM2 | 2000 | 15 | Φ12.5 | 80/180 | Φ219*480 | 7.5 |
| JM3 | 3000 | 15 | Φ15.5 | 100/200 | Φ219*525 | 11 |
| JM5 | 5000 | 9 | Φ19.5 | 250 | Φ325*620 | 11 |
| JM8 | 8000 | 9 | Φ26 | 300 | Φ406*808 | 15 |
| JM10 | 10000 | 9 | Φ30 | 350 | Φ406*900 | 22 |
| JM16 | 16000 | 9 | Φ38 | 400 | Φ550*1000 | 37 |
| JM20 | 20000 | 9 | Φ42 | 450 | Φ650*1300 | 45 |
| JM30 | 30000 | 9 | Φ54 | 450 | Φ900*1500 | 63 |
Questions before make quotation:
1. Purpose of the winch, lifting or pulling?
2. Where will you use the winch? construction, mine or marine?
3. Capacity?
4. Rope volume?
5. Requirement for rope speed?
6. Voltage?
7. Any other specific request such as double speed, additional
equipment?
The more detail, the more accurate quotation.

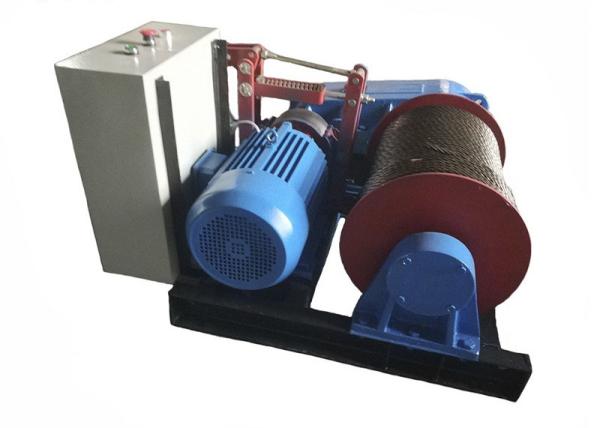

Product show:
