Electric Beam Trolley Crane Wheel Block for Single Girder Double Girder Overhead Crane


Brief Introduction

End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion
wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
It only need to weld the main beam and end beam after correction. Making crane manufacturing,installation and maintenance
very easily.European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.

Main Features:

1. Low noise, commodious cabin and good view .
2. Safe and reliable traveling .
3. Reasonable structure .
5. Smooth starting and stopping .
6. Saves electricity specifications .
7. Convenient maintenance .
8. Excellent exchangeability for parts .
9. Overload limiter , Limit switch (lifting and traveling) , Interlock protection device ,
Buffer ,Overhaul cage ,Rail clear plate ,Protective cover ,Bus bar preventer plate ,Anticollision
device ,Main isolating switch ,Emergency stop system ,Motor overload protection etc.

Technical parameters

Four types of Bridge Crane End Carriage

1.Single girder end carriage
Single Girder End Carriage is suitable for Crane with Capacity less than 32 tons. Its structure is simple, and its maintenance is convenient. It has two high torque driving motors, which is suitable for most of the use environment.

2.Double girder end carriage
Double Girder is suitable for double girder cranes. The rated load is greater, and it is used in high load environment. It has a traveling wheel installed, running smoothly, and having less noise.

3.Undehung end carriage
Undehang End Carriage is used in Suspended cranes, compared to ordinary End Carriage, and its wheels are specially designed for suspension, and its weight is lighter.

4.Double track power trolley
Double Track Power Trolley has a larger capacity and more than 50T. Two high torque crane motor are used in double beam driving.

Those four types of end carriage suitable for a variety of working conditions, including factories, workshops, outdoor, warehouses, etc.

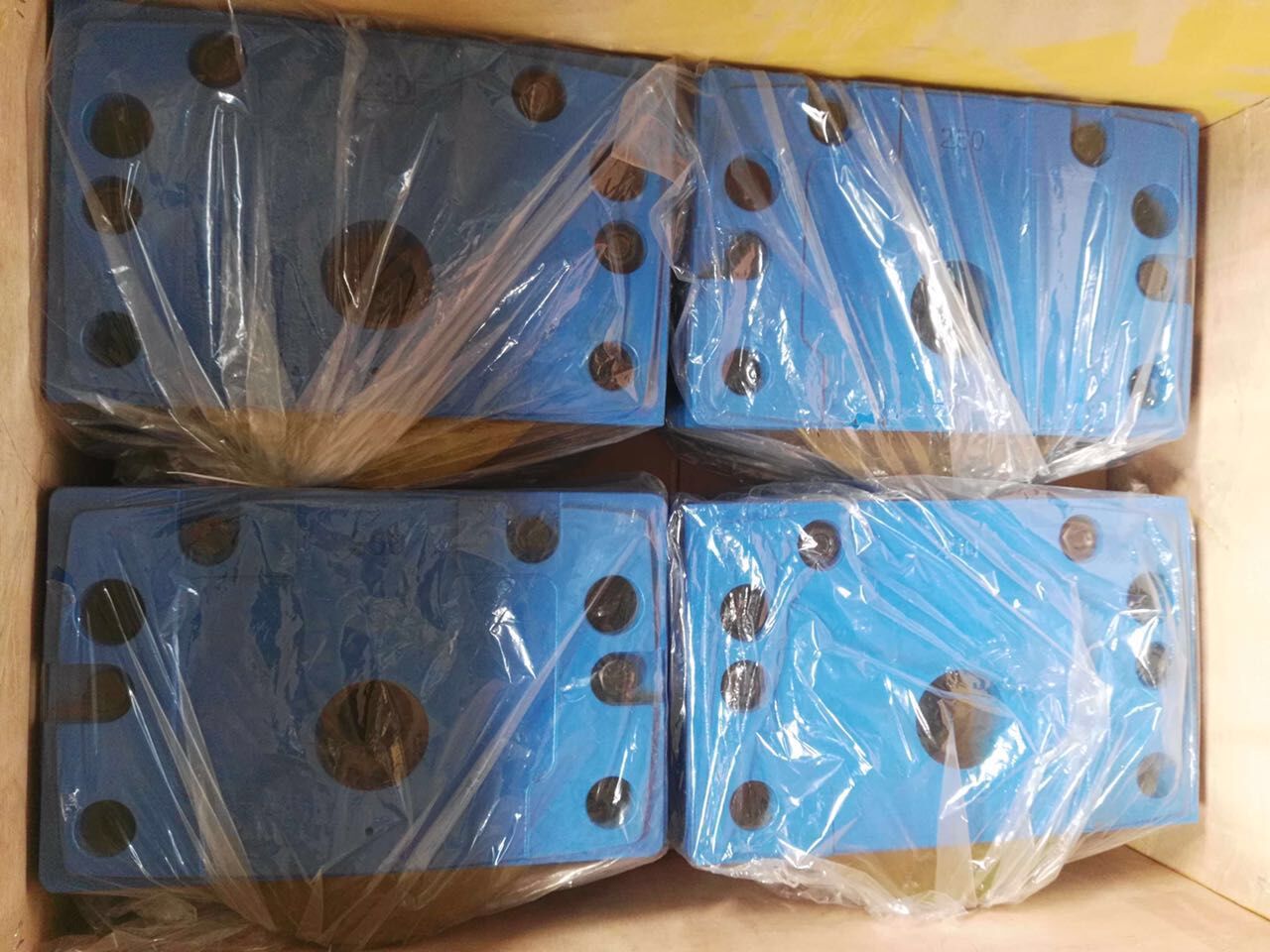

Product details:

Chongqing ShanYan Crane Machinery CO.,LTD was established in 1991 as a privately owned Chinese company and has developed into a highly respected specialist company with a strong reputation as innovators, manufacturers and distributors of hoisting machinery.

Our products are: JCYC brand electric wire rope hoists, electric chain hoists, manual chain hoists, Electric winch,bridge cranes, gantry cranes and jib cranes.

Our company has built the reputation for 20 years, acquired the SGS ISO 9001, CSA GS and CE certification, CE Mark and many other domestic crane and hoist certifications especially for the eighth Chinese National Foundation Award winning. These assured the continuing success of ShanYan crane to exceed the world standard as well as the pioneer in lifting equipments in the future.

Shanyan Crane continues to show steady growth both with its representation of overseas principles and in design and manufacturing of its own products - for example, electric wire rope hoists, chain blocks, overhead and gantry travelling cranes, lifting and hoisting attachments and jib cranes.

Our companys policy is excellent in engineering and continuing involvement with the advances in technology, Make our customer can be assured of Safety, Quality, and Efficiency!

Our goal is simple: to sell the best lifting equipment at the best prices, and provides industry-leading customer service. We personally get to know each of our customers, and we know how to discover the most valuable part of our business , to help others achieve their goals.

For more detailed information on our lifting equipment, please do not hesitate to contact us! We welcome your inquiries, and look forward to working with you.
