    200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

    Ask Lasest Price
    Brand Name : JCYC
    Model Number : KDJ
    Certification : CE&ISO
    Price : USD negotiate per unit
    Payment Terms : L/C, T/T, Western Union, D/P, D/A, MoneyGram
    Supply Ability : 500 pcs per month
    Delivery Time : 10 -15 working days
    • Product Details
    • Company Profile

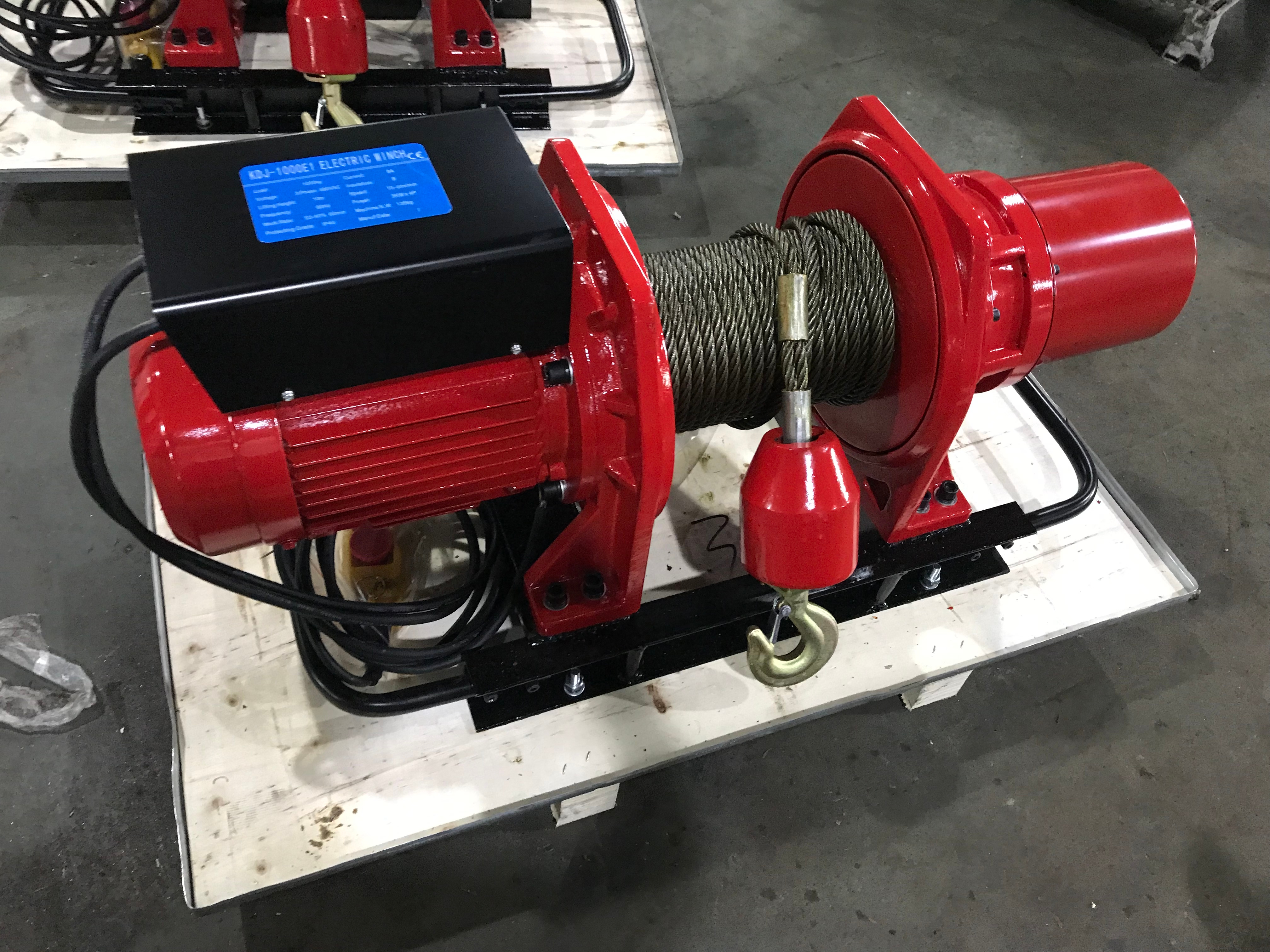

    200Kg Lifting 3 Phase Electric Wire Rope Winch 220v

    3 Phase Electric Wire Rope Winch 220v - 440v 200Kg - 10000 Kg Capacity


    Product Description
    KDJ Multifunctional Electric Hoist is a steel wire rope hoist for lifting goods, the capacity is from 0.3T to 1T, the length of wire rope is from 30M to 60M more,the usage is pulling and lifting,except exclusive-use, also can match-use with electric trolley and plain trolley, geared trolley, these trolleys with simple structure, light weight, easy to load and unload. Be widely used in warehouse, construction and many kinds of producing-line.
    The product has the characteristic brake promptly,small volume,light, compact, convenient and easy to maintain.

    Product parameters

    ModelLoad rated (kg)Speed M/minMotor hpxpVoltageLiftingWire RopeG/ N.W.Packing size
    Freq.Heightφmmxm(KG)cm
     (M)
    KDJ-200E20010-150.8x4110-240v 1ph 50/6hz296x3036.5//35.258×33×31
    12-18
    KDJ-250E25010-151.0x4296x3041/39.561×33×32
    12-18
    KDJ-300E30010-151.5x4297x3047/45.564×33×32
    12-18
    KDJ-300E130010-151.5x4220-440v 3 ph 50/60hz297x3050/4864×33×32
    12-18
    KDJ-500E150012-182.5x4589x60156/139104×51×62
    KDJ-750E175012-183.5x4589x60167/150104×51×62
    KDJ-1000E1100012-185x4 11x60178/161104×51×62
    KDJ-2200E122007-12.57.5x49716x100500/450156×70×81
    KDJ-3200E132006.3-8.87.5x69718x100550/500156×70×81
    KDJ-3500E135006.3-8.810x414018 x143600/550156×70×81
    KDJ-5000E150008.0-1215x419222.4 x2002700/2580210×120×135
    KDJ-10000E1100007-1130x423532 x 2503200/3080230×120×135

    FEATURES
    Wire Rope Fixing:No escape of wire rope from the drum by means of P.T. screwdevice.
    Drum Transmission:The shaft direct driving drum provides rope replacement and alternation of rotation with easy.
    Electromagnetic:Designed for both static and dynamic loading. Brake will auromatically apply in the event of power cut. Large friction surfacr area. No adjustments or serving requirement.
    Gear Box:Provides strengh, durability an non-worry of breakage of structure.
    Induction Motor:IEC induction motor mounted provides reallity availability, cost effective and service spares availability world wide.
    Ball Bearings:High efficient and heavy duty bearings provide long life.
    Planetary and Anti-wear Gears:Compact, load sharing minimizes size, weight, and cost. Full depth spur gear planetary reductions ensure quiet and long life.
    Machine Fixture:It is made of super armor plate, used for suspender, lifter and girder.

    Facotry show



    Questions before make quotation:
    The more information you provide, the accurate solution we can prepare for you!
    1-Capacity?
    2-Lifting height?
    3-what is lifting material? How about working environment?
    4- Power supply and control voltage?
